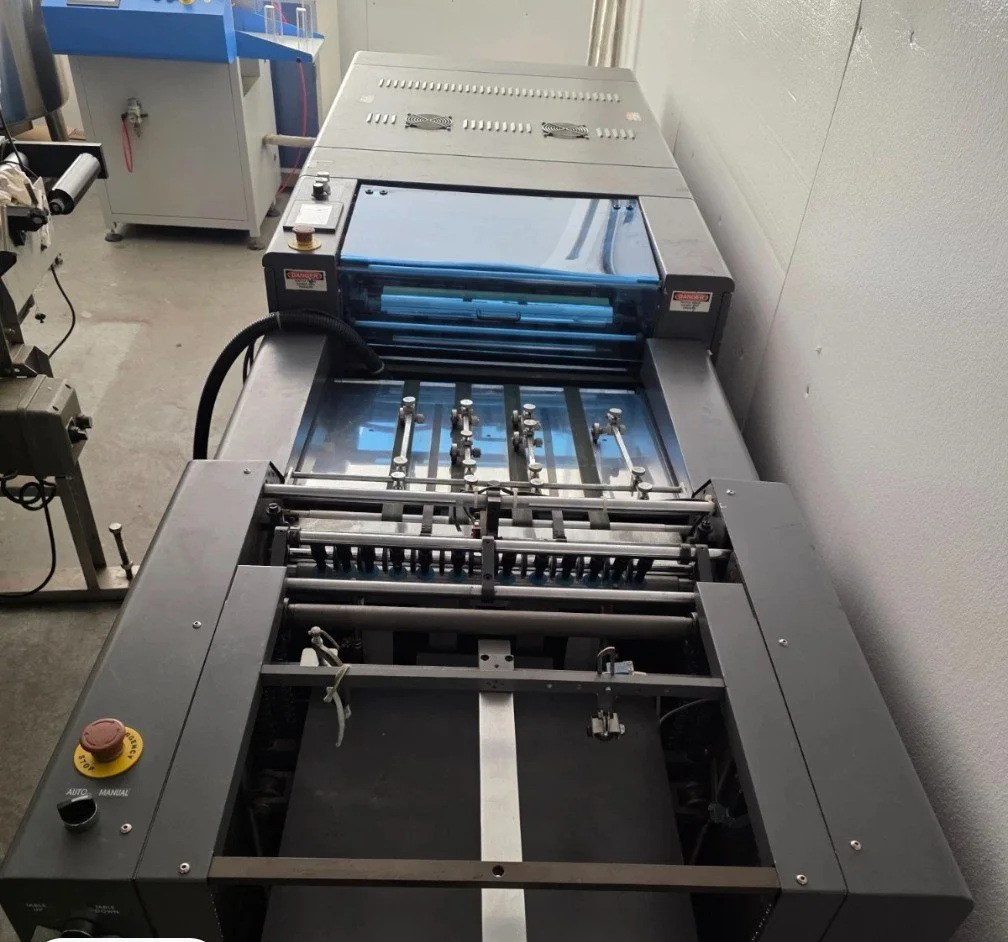

The Tec Lighting TruCoat TRUVF-16D (often designated in configurations as the TRUV-16D or TRUVIL-16D series) is a 16-inch industrial UV coating system engineered for short-run, on-demand flood finishing. The "F" variant specifically includes a high-capacity automatic feeder system.
There are 2 videos below. One is the MFG video of the whole process and the other is of this specific unit running
Take a look: (you may need to copy and paste in your browser)
https://youtu.be/4w_bUJAFVCs
https://youtu.be/3jbC9jWg6iU?is=zuhoF4oDEFqmmAv2
The primary technical specifications for this machine include:
Capacity & Material Limits
Maximum Sheet Width: 16 inches (40 cm)
Maximum Sheet Length: 26 inches (66 cm) when utilized with the automated deep pile feeder tray (Note: The base hand-fed variant supports unlimited length)
Paper Weight / Thickness: 150 to 600 GSM (Handles stocks ranging from 100 lb text up to heavy cardstock via an adjustable roller gap) [1, 2, 3, 4]
Performance & Operation
Production Speed: Up to 4,000 to 4,800 sheets per hour when running automated feeding configurations (Up to 1,800 sheets/hour or 132 feet per minute on manual/hand-fed configurations)

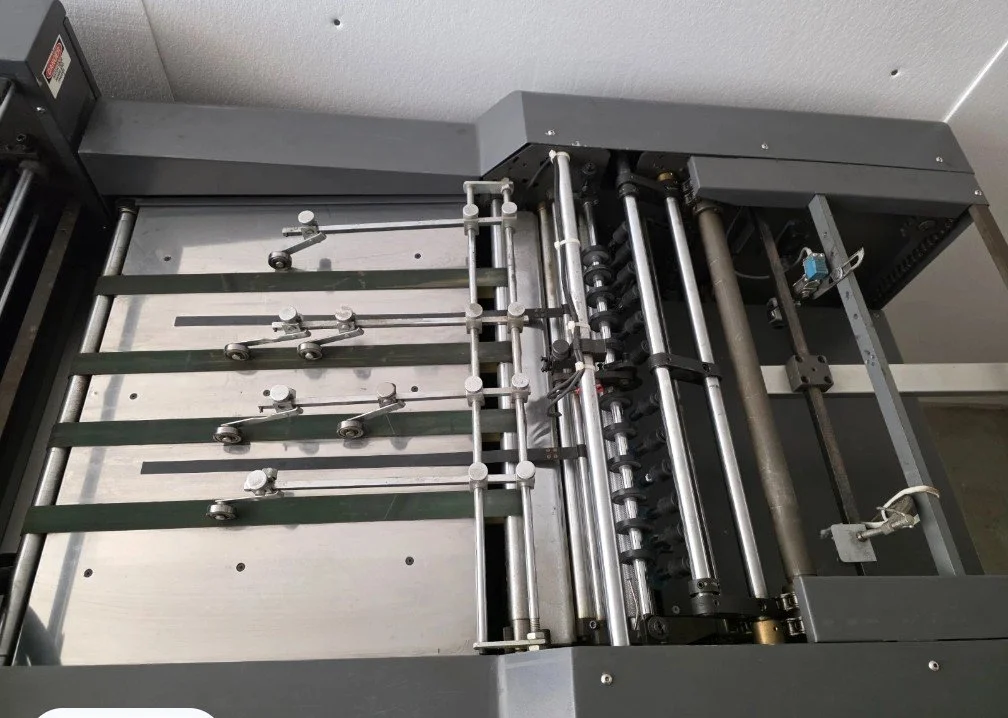

Feeder Capacity: 22-inch deep pile suction-feed capacity

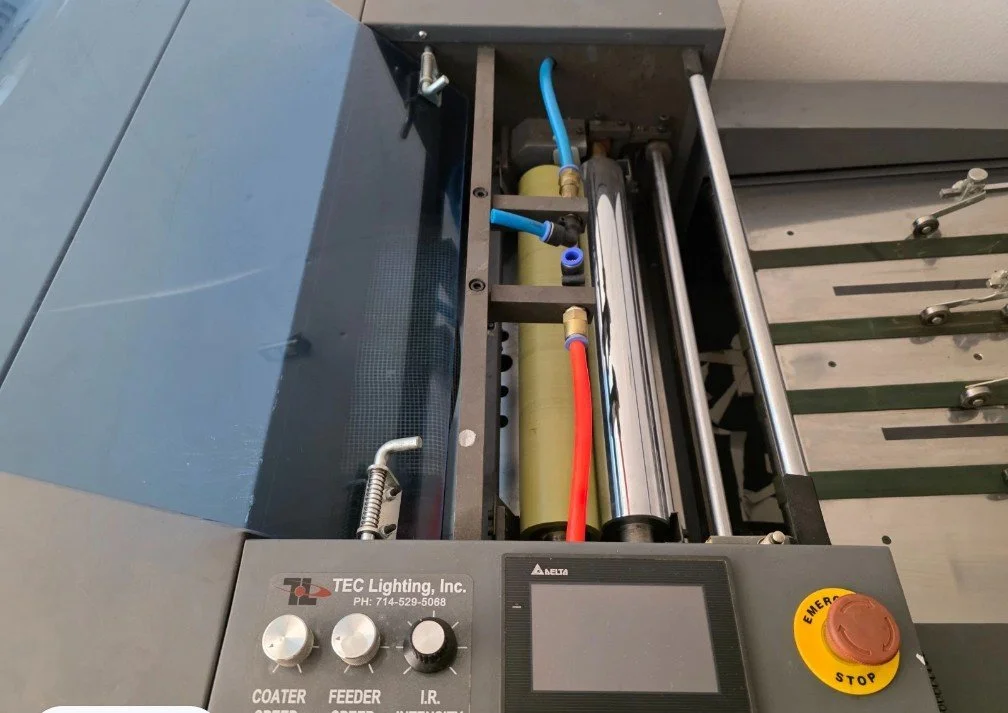

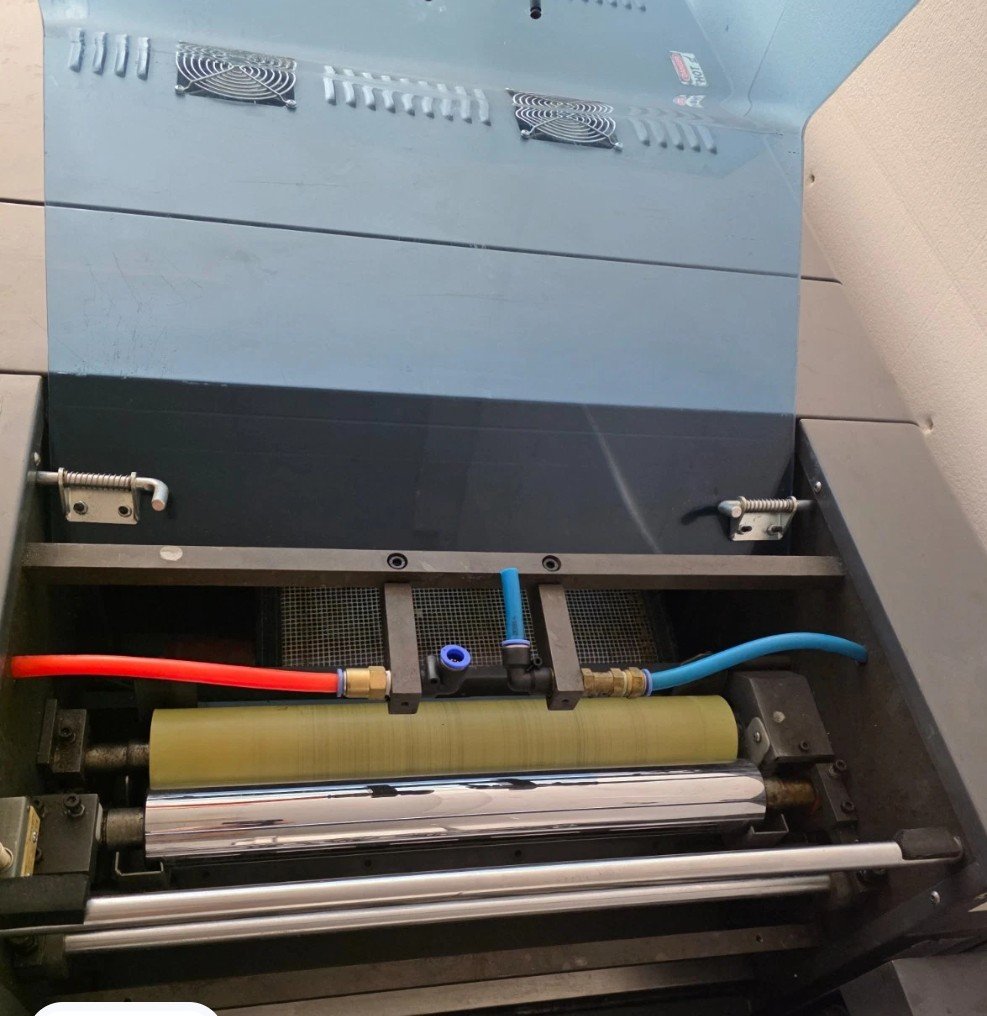

Application System: 3-roll coating system equipped with a stainless steel doctor blade

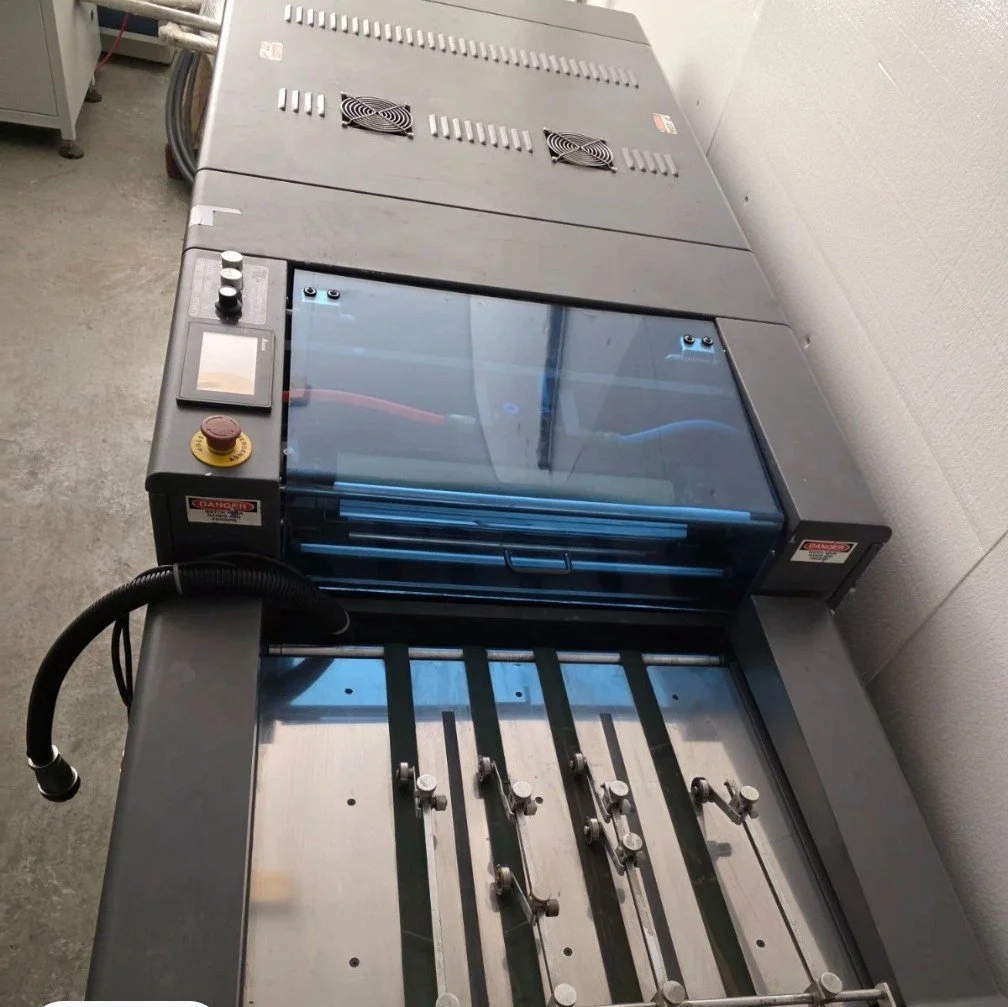

Curing System: 3,200-watt UV curing lamp accompanied by variable intensity infrared (IR) flow lamps
Startup & Setup Time: Ready to coat from startup in less than 5 minutes
Changeover Time: Less than 10 minutes to switch between different coating fluids or texturing rollers [1, 2, 3, 4, 5, 6]
Physical & Electrical Requirements
Power Requirements: 208–220V AC, 1 Phase, 60 Hz, 35A to 40A (depending on feeder installation)

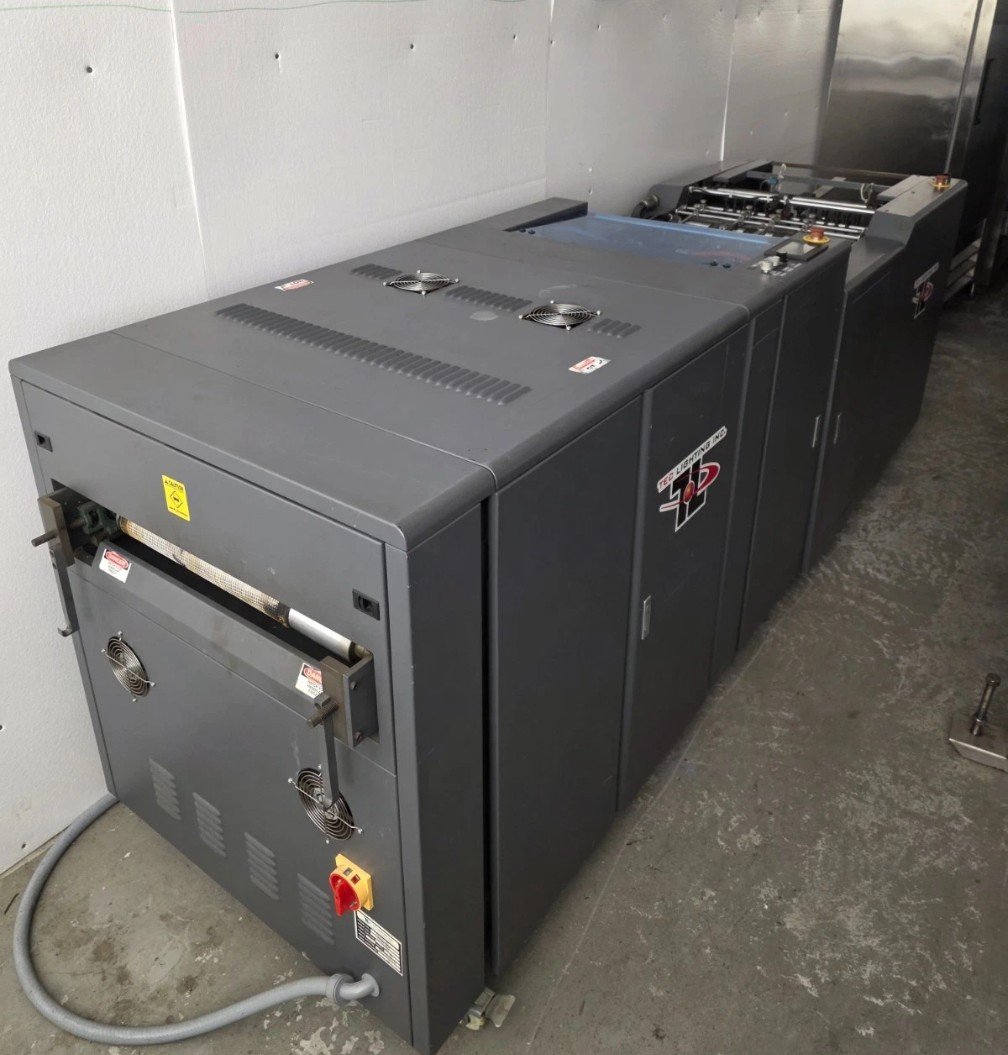

Physical Dimensions: 72" L x 42" W x 50" H
Machine Weight: Approximately 1,235 lbs [1, 2, 3, 4]
Key Features
Compatibility: Easily coats toner-based digital prints, offset sheets, and inkjet prints.
Finishes: Applies gloss, satin, matte, and soft-touch textures.
Control System: Operated via an onboard touchscreen interface featuring integrated system diagnostics.
Eco-Friendly: Utilizes 0 VOC (Volatile Organic Compound) UV coatings and wash-up fluids, yielding
fully recyclable output
Fantastic system so grab it while its here. Just $16,850.00
(delivery & installation can be quoted per location)
Call us @ 440-949-1202
