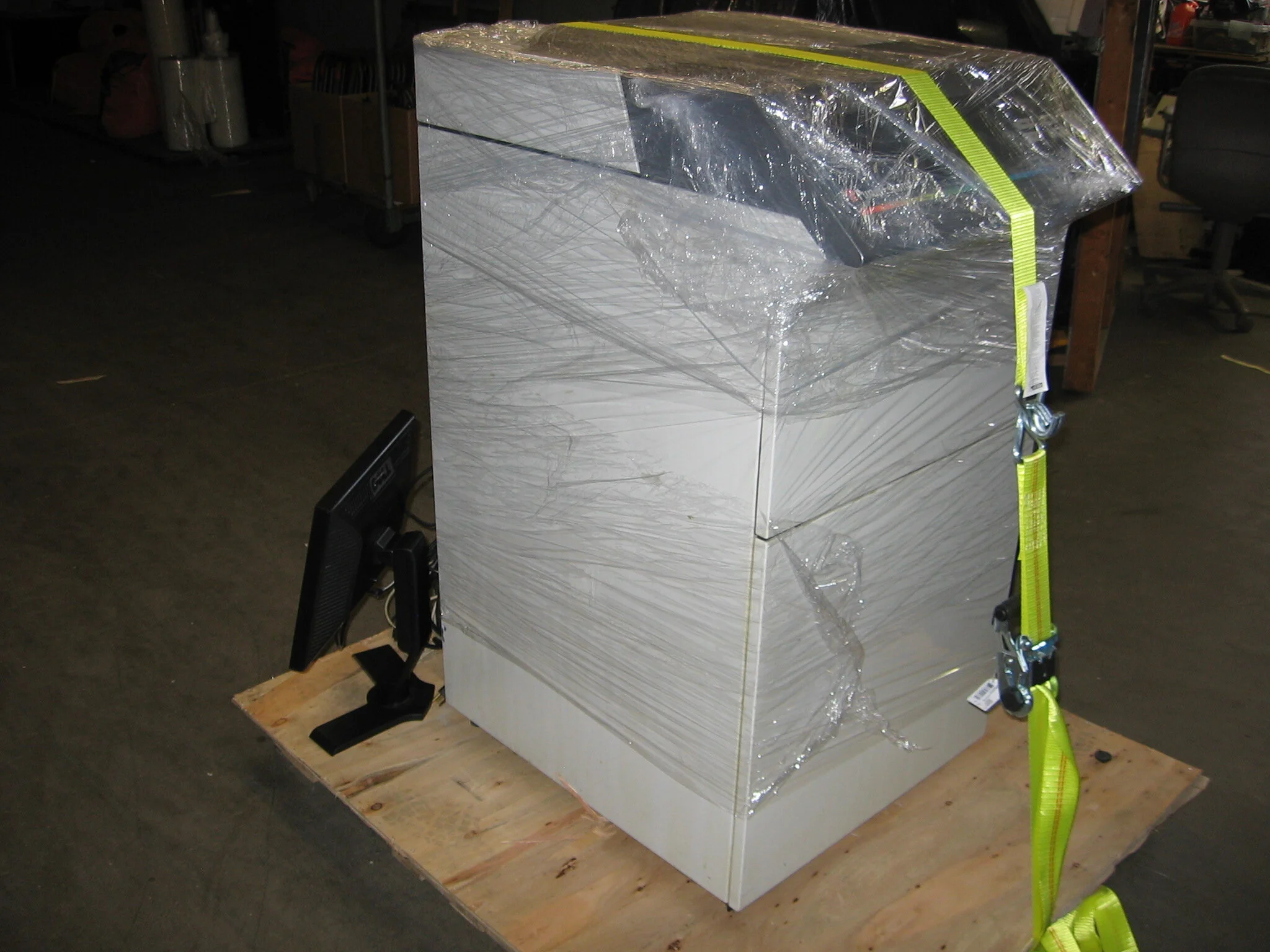

Purup Eskofot DPX Genesis Computer-to-plate system in excellent condition!!

A Profitable Difference!

This CTP system was just pulled from a working environment and is working perfectly. very low use and kept in pristine condition. Comes with the very stable and reliable JAWS RIP and includes a nice flat screen monitor with keyboard and mouse.

This CTP system also includes the imaging unit, internal processor, RIP with rip computer, security dongle, all cabling and manuals.

We are very experienced with these units and thoroughly clean, oil, adjust, and repair/replace any suspect components and then test before making available to our customers.

Specifications:

Imaging Technology: Full drum

Image Area: 12.5" x 21.6"

Plate widths: from 9" - 13"

Plate Lengths: Variable 12'-22'

Plate Material Roll Length: 200'

Production Speed: 25 Plates per hour

Plate Cutter: Automatic precision cutting of each plate

Processor: Internal processor with temperature control and automatic replenishment.

Resolution: 600 - 2400 dpi; Up to 150 lpi screen ruling

Spot Size: 35 um

Laser Technology: 760nm, 1mW Visible laser Red Diode, Class 1 Laser product according to EN60825-1:1994 (CE/CSA)

RIP: JAWS , Post Script, Level 2 compatible system

Input: Accepts Post Script and PDF Files

Operation System: Windows 2000 professional

Interface: 10/100 Ethernet

Dimensions:44.5" H x 30.6" W x 24"

Weight: 450 Lbs.

Electrical: 200-240 Volts AC, 50/60Hz, 15 Amps @ 60 Hz,

JUST $3,400.00 !!!

(delivery & installation can be quoted per location)

Duplo System 2000 Booklet system with DBM120 booklet maker, DBM120T trimmer, and motorized conveyor delivery in great condition!

This system has been cleaned, oiled, and adjusted and is ready to go to work in your shop today!

Take a look at the youtube link below to see a video of it running:(you may need to copy and paste in your browser)

PLEASE NOTE: THIS SYSTEM DOES NOT INCLUDE A COLLATOR TOWER. THE TOWER SHOWN IN VIDEO IS FOR DEMONSTRATION PURPOSES ONLY.

let us know if you need a tower as well and we can add one for additional cost.

https://youtu.be/2VInc6mKyFY

Specifications for DBM-120 & 120T

Manufacturer Duplo
Model DBM-120 booklet maker
Year 2008
Condition lightly used cycle count 2mm
Basic Specs of the DBM-120
- Speed: Up to 2,400 sets/hour
- Sheet size: 7.87'' x 7.87'' to 12.6'' x 17.72''
- Corner Stapling sheet size: 8.5" x 11"
- Side Stapling sheet size: 5.47" x 7.87" to 9.09" x 12.6"
- Paper Capacity: up to 25 sheets of 75 gsm
- Programs: 10 pre-set and 3 custom
- Staple heads: 2
- Staple Positions: 5
- Electrical: 120 Volts, 60 Hz
- Dimensions (L x W x H): 28'' x 22" x 23"
- Weight: 183 lbs.
Features of the DBM-120
- Low staple indicator
- Moving clincher stapling mechanism
- Paper jam detector
- Side/back jog
- Adjustable roller pressure & detachable conveyor
- Automatic size changeover for stapling/folding
- 2-way interface for Duplo collators
DBM-120T Specifications Trimming Mechanism: Upper and lower shearing action
Sheet Capacity20Model #DBM-120TWeight124 lbsHeight23"Depth15"Width22"Voltage120 V

Fantastic system so grab it while its here. Just $6,850.00 !!!

(delivery & installation can be quoted per location)

Call us @ 440-949-1201
