2007 MODEL IN MINT CONDITION

Take a look at the video link below to see it running (you may need to copy and paste in your browser)

https://youtu.be/o6I9y2k8Si8?is=3zAdiJC5p1P9_HUU

SPECIFICATIONS

Number of Drill Heads 3

Drill Sizes Available (2" capacity)1/8" to 1/2" / 3 to 13 mm

Drill Sizes Available (2-1/2" capacity)1/4" to 1/2" / 6 to 13 mm

Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm

Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm

Maximum Drilling Capacity 2-1/2" / 63 mm

Strokes per Minute (adjustable) Up to 18

Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm

Vertical Adjustment of Individual Heads 1/4" / 6 mm

Table Size 19-1/2" x 31-1/2" / 50 x 80 cm

Table Height 37" / 94 cm

Overall Height 59-1/4" / 151 cm

Floor Space Needed 36" x 41-1/2" / 91 x 105 cm

Net Weight (approximate) 520 lbs / 236 kg

Shipping Weight (approximate) 570 lbs / 259 kg

Motor Type Hydaulic

Motor Base Power 1 Phase, 60 Hz, AC.

Pump: 1/2 H.P.

Spindle Motor: 1 H.P.

Power option 1 208 Volt, 18 Amps (Recommended service size: 30 Amps)

Power option 2 230 Volt, 17 Amps (Recommended service size: 30 Amps)

Fantastic system so grab it while its here. Just $3,750.00 !!!

(delivery & installation can be quoted per location)

Call us @ 440-949-1201

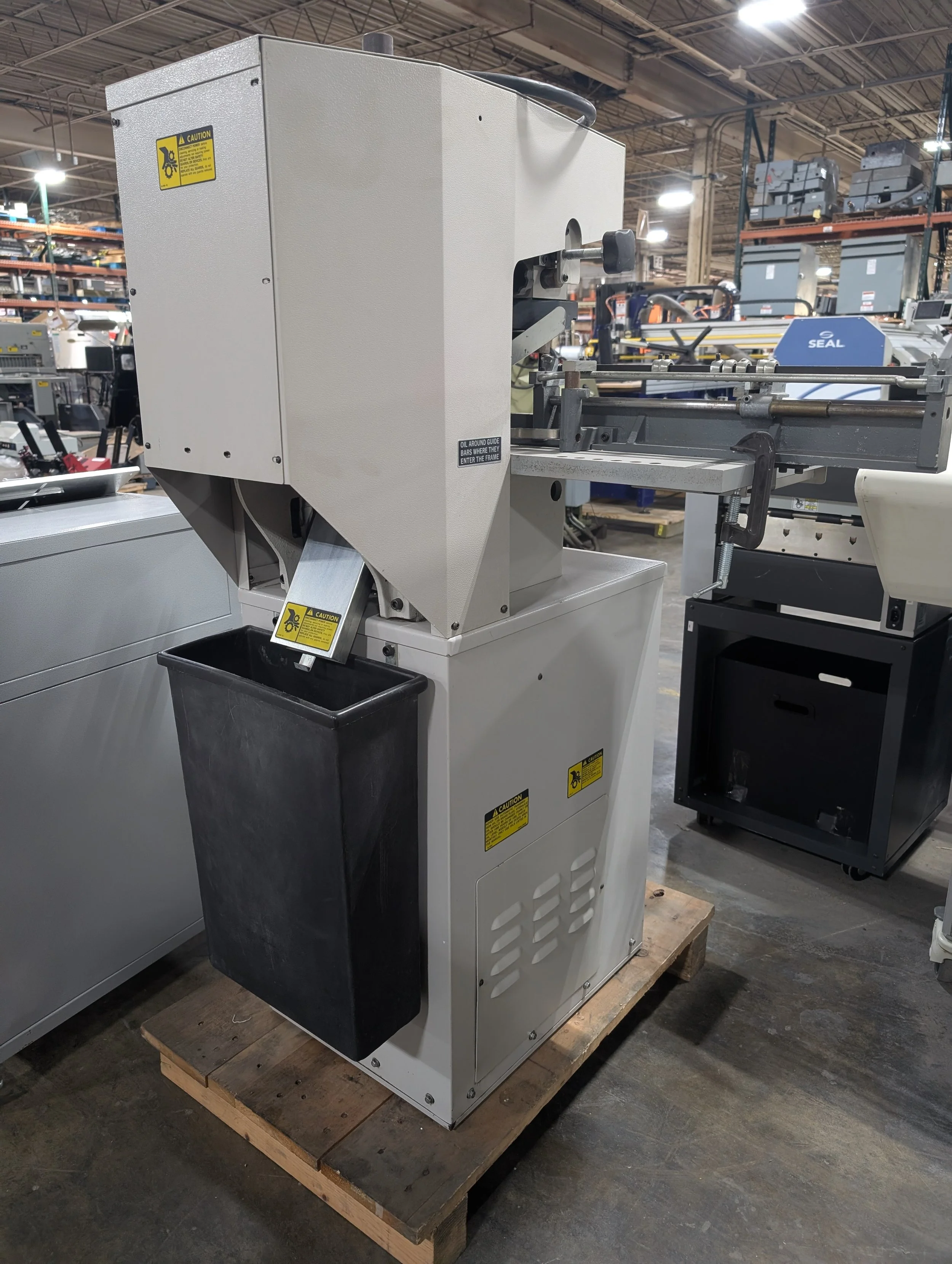

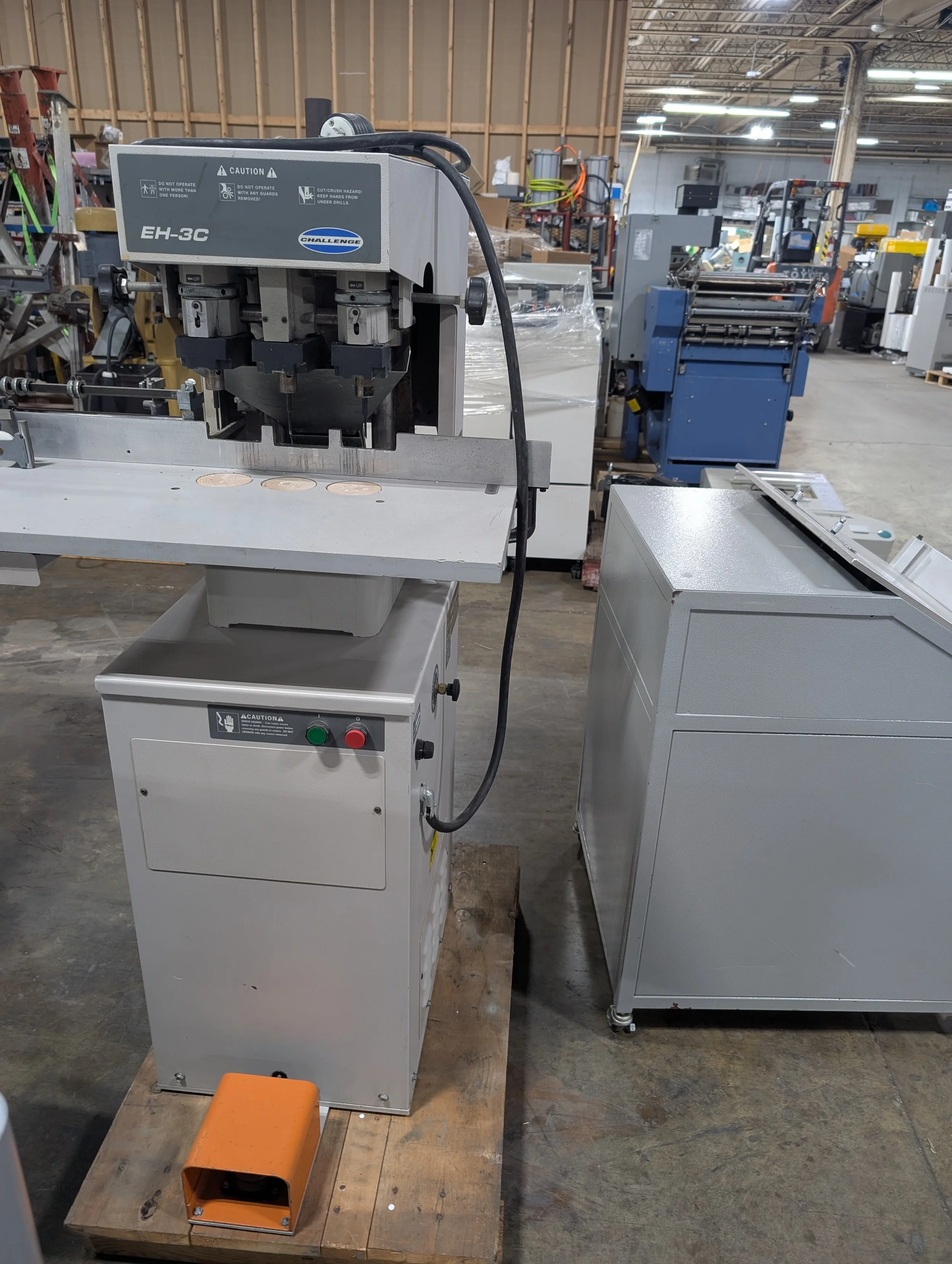

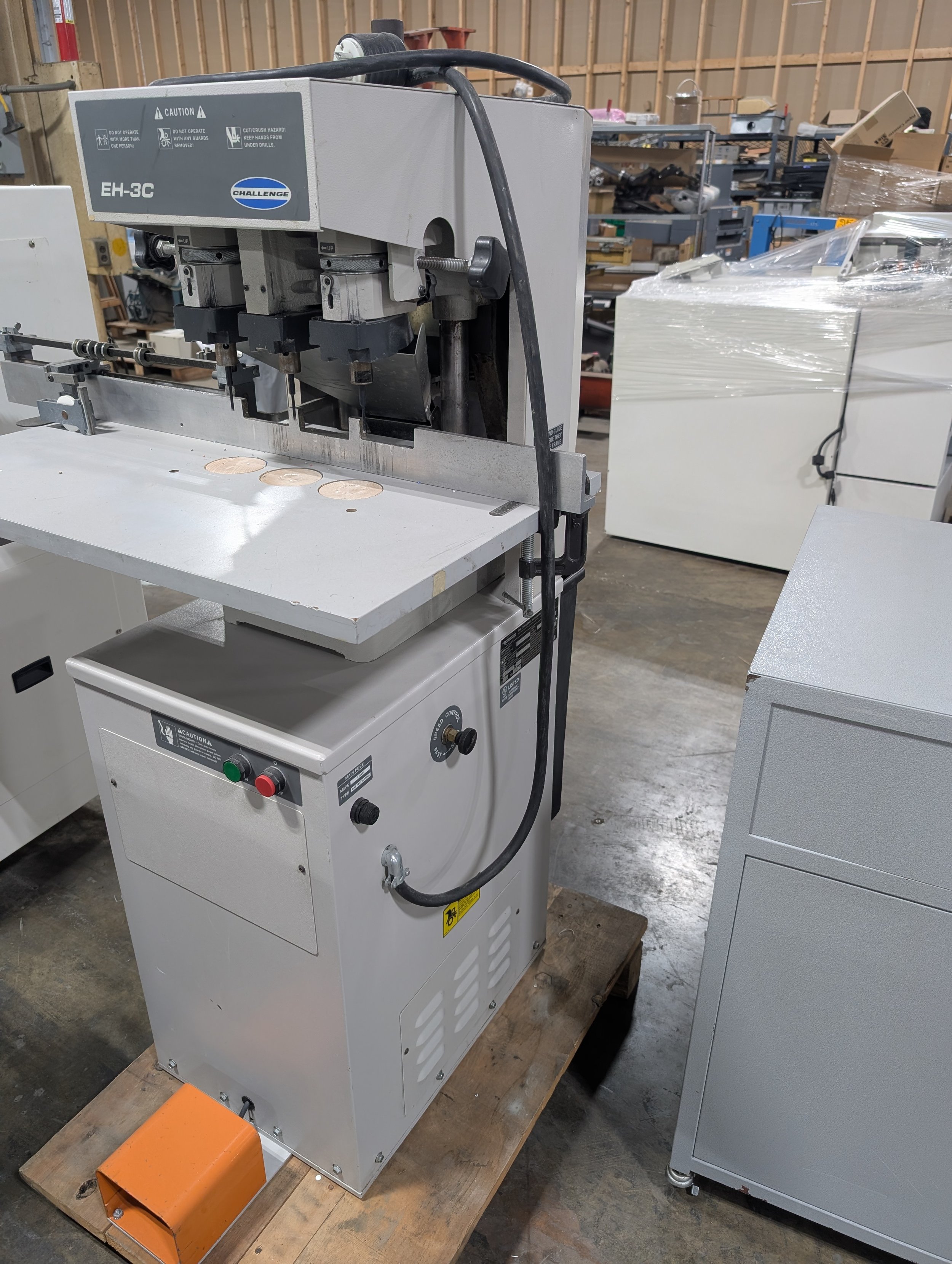

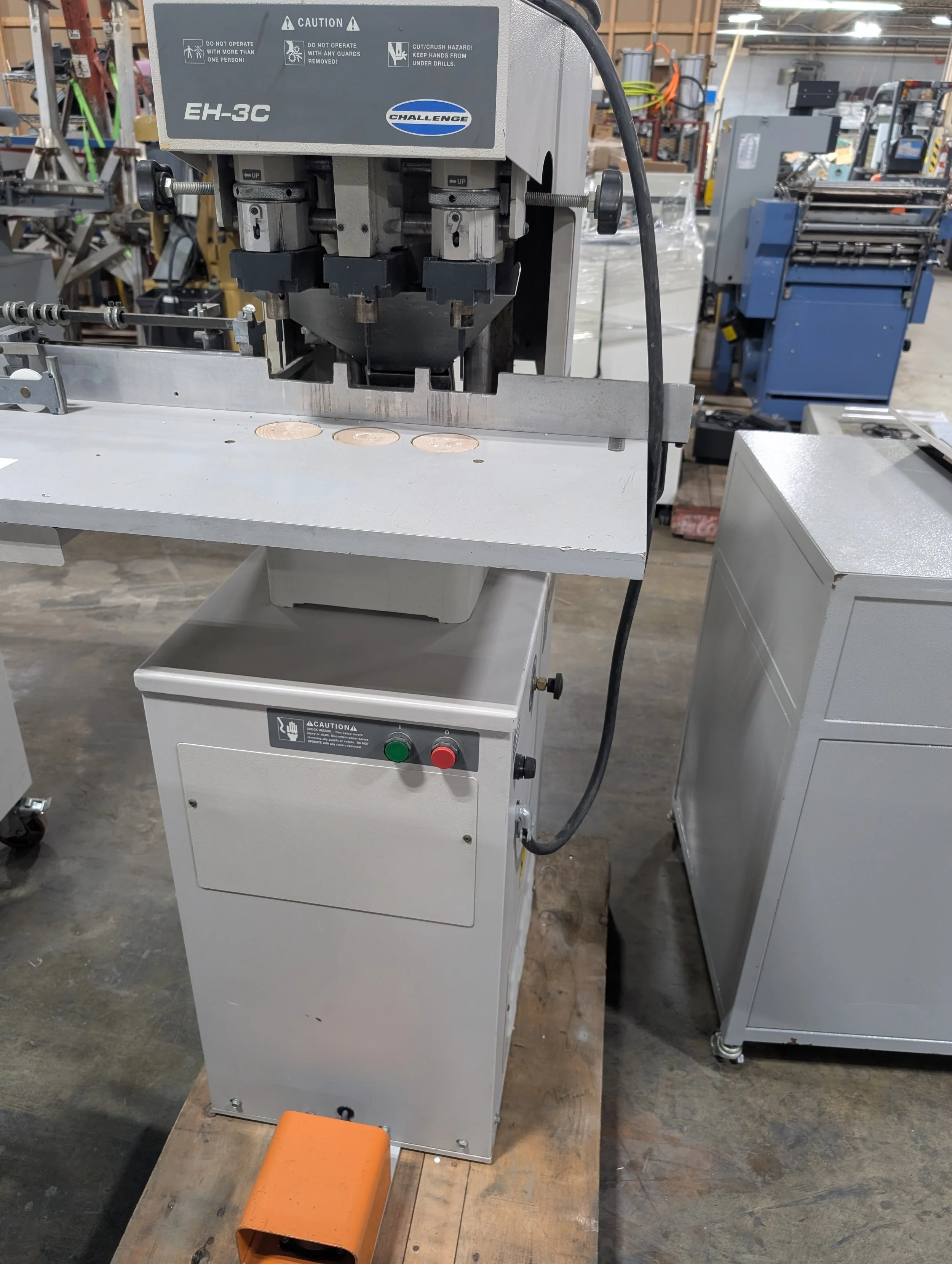

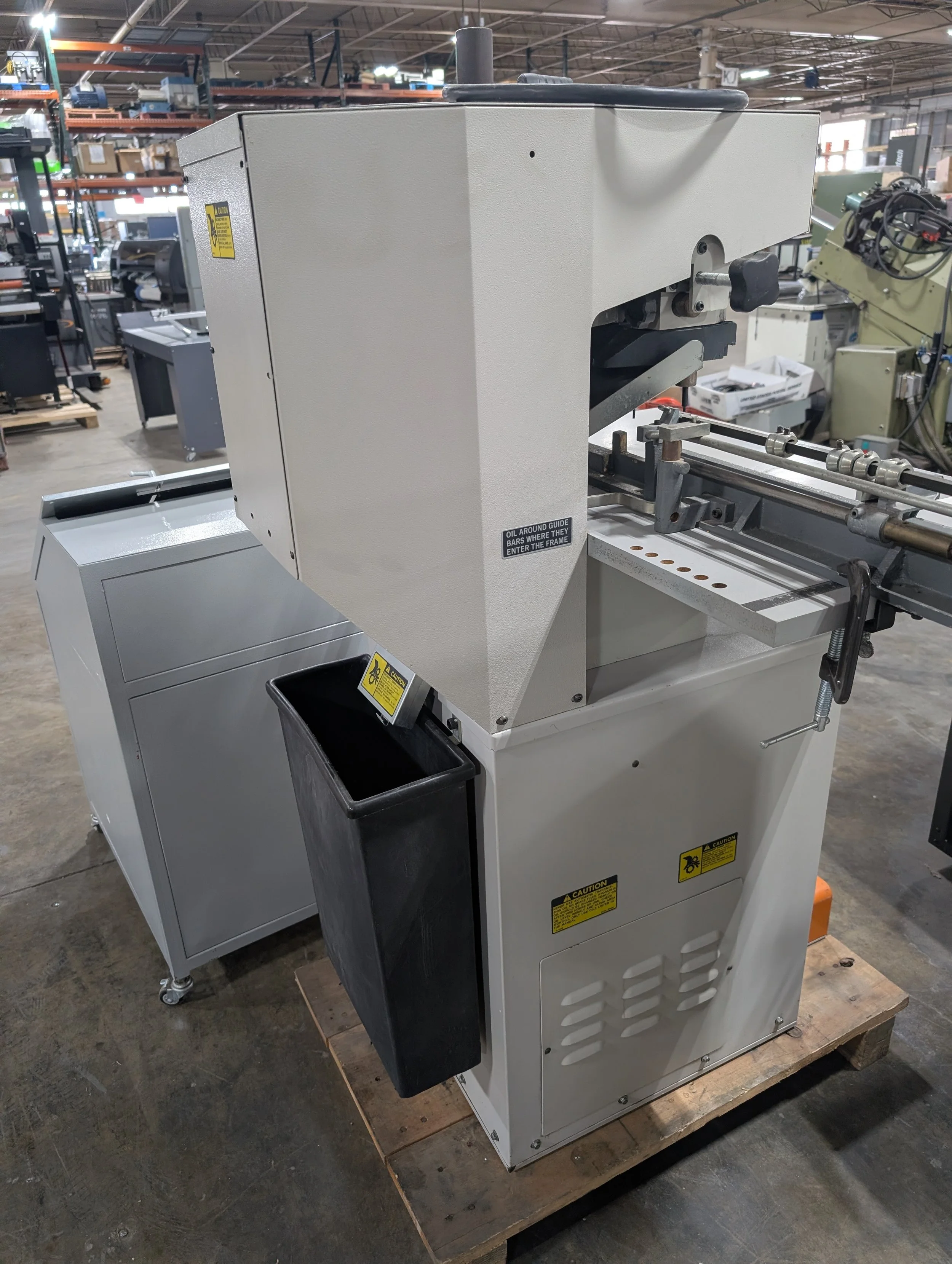

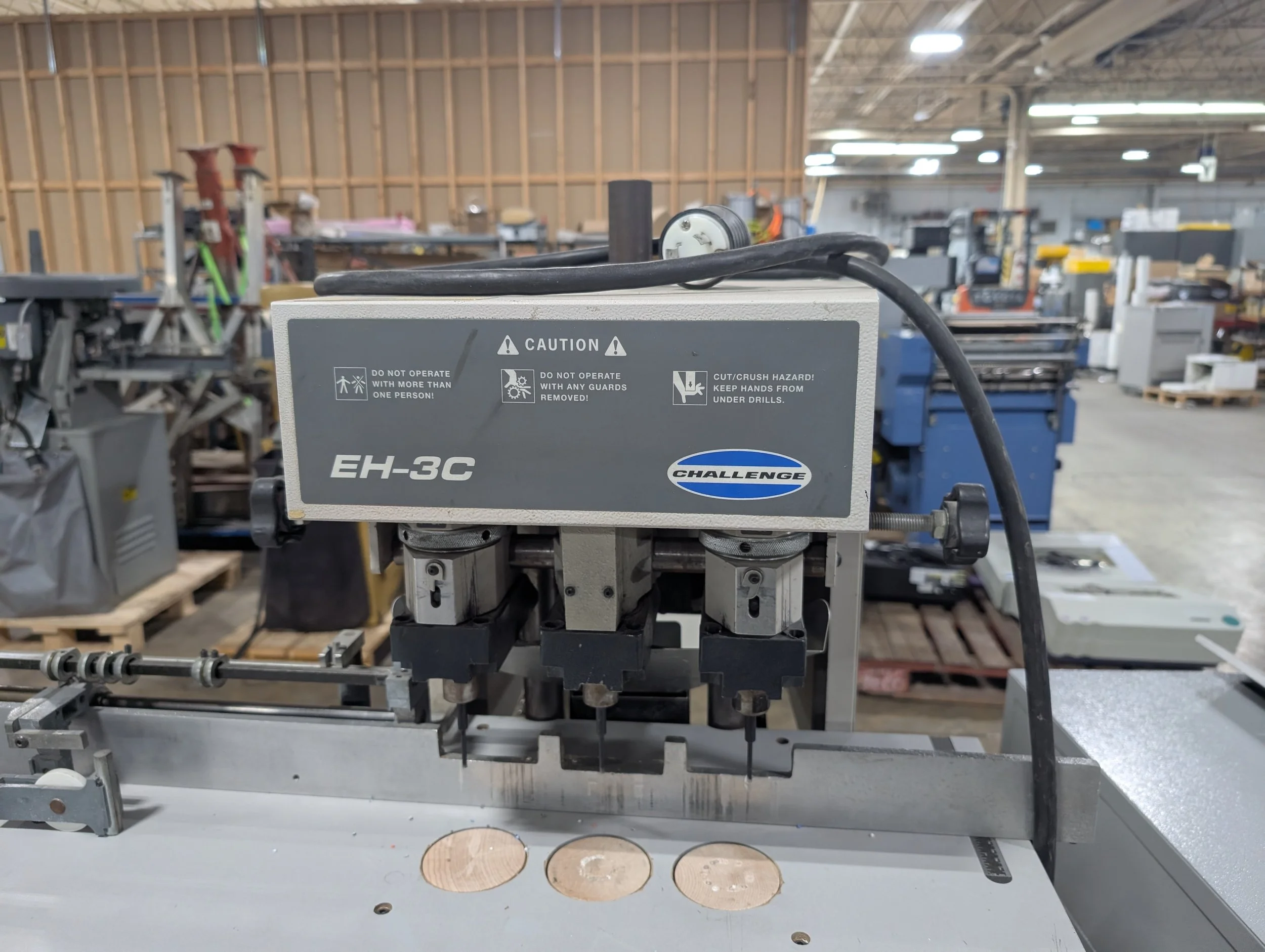

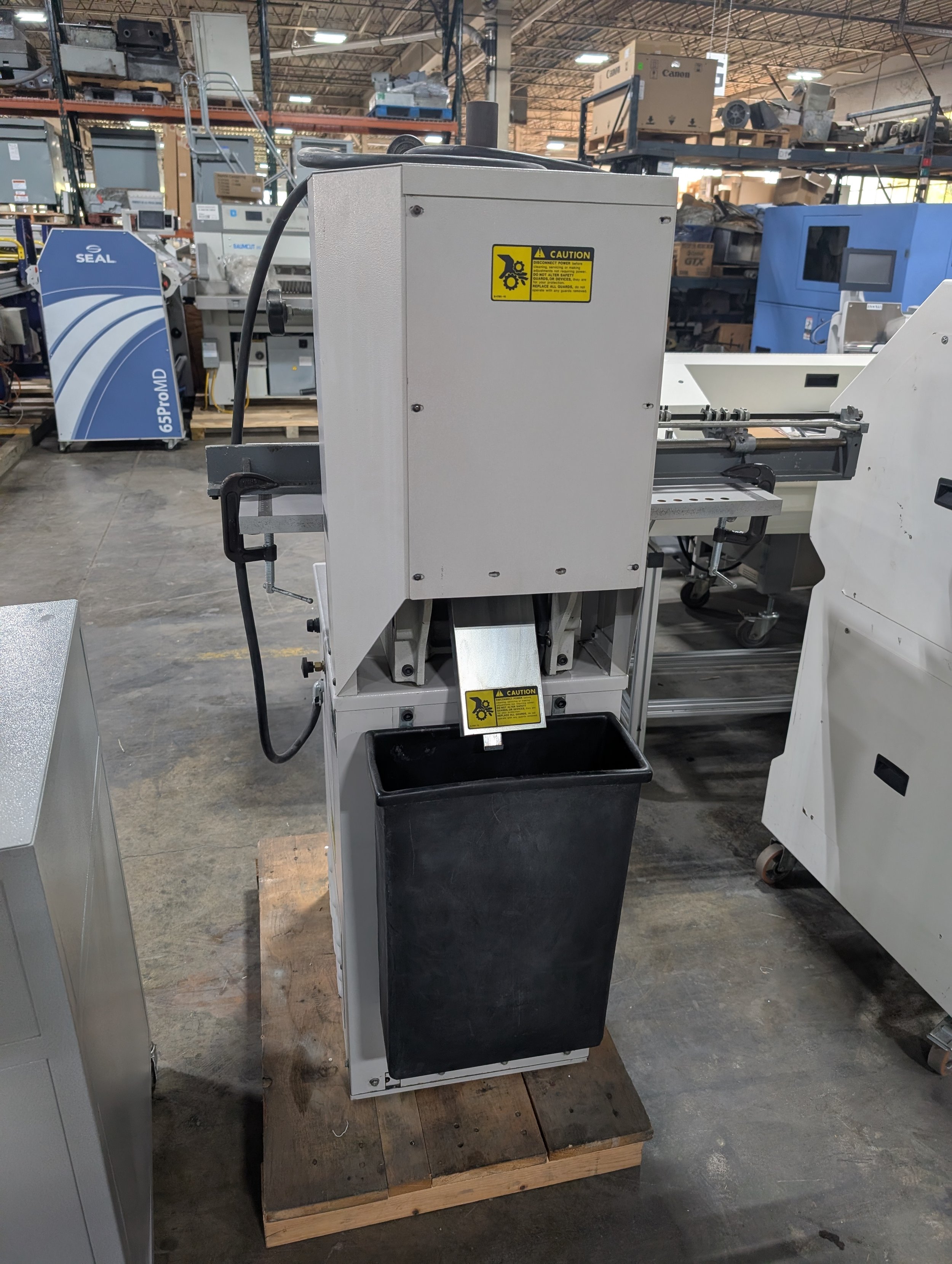

Challenge EH-3C hydaulic 3 head paper drill
