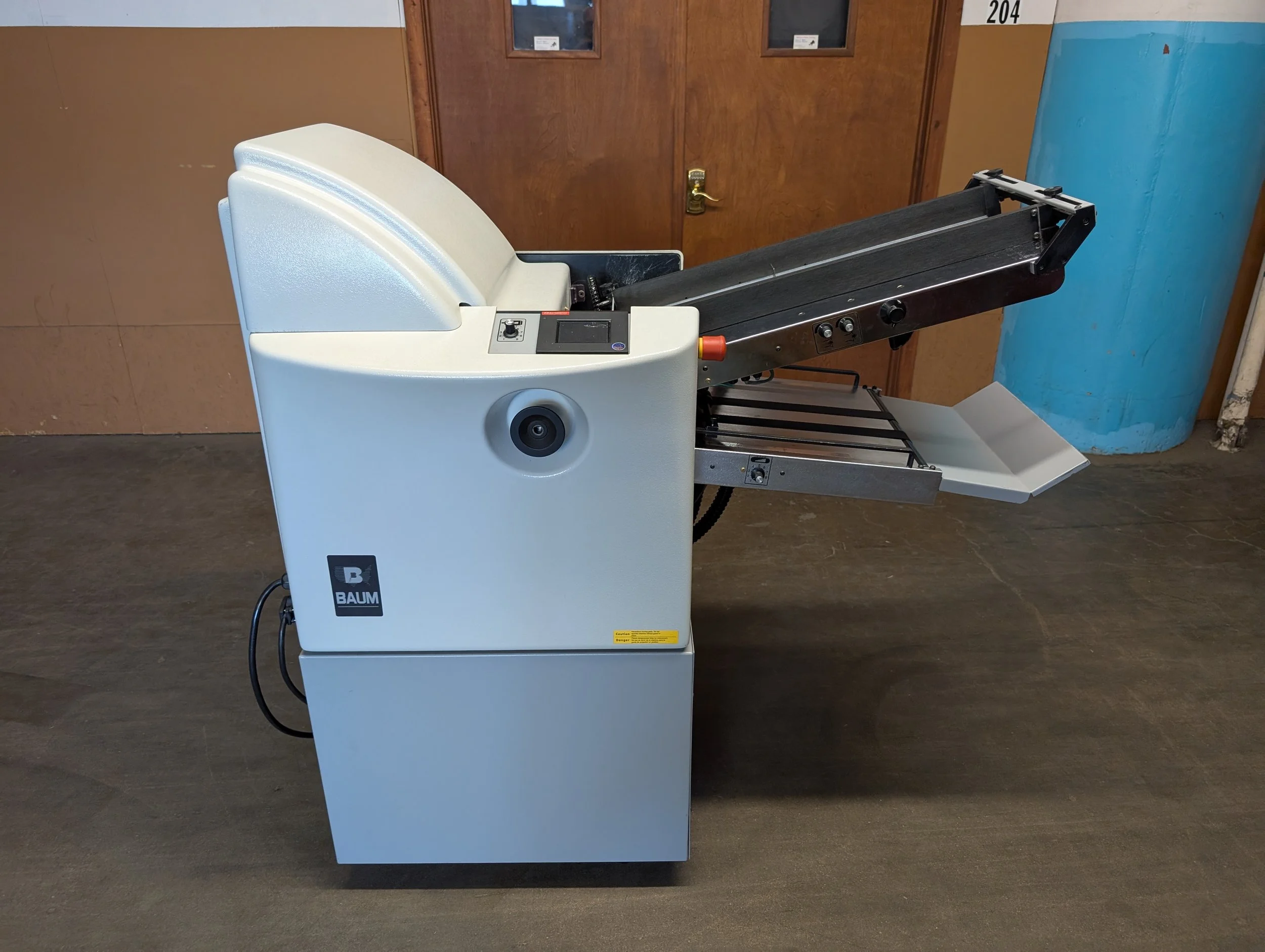

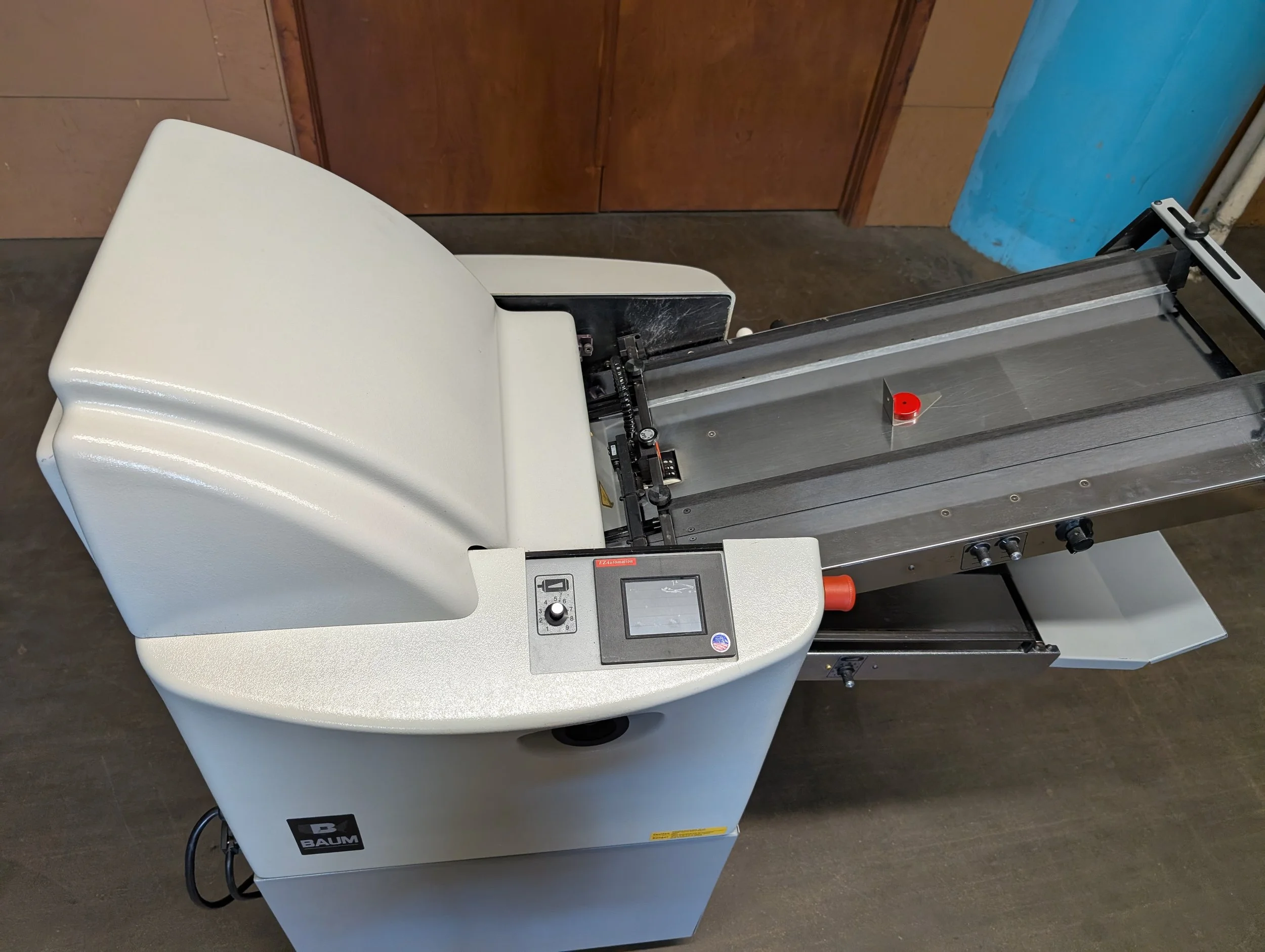

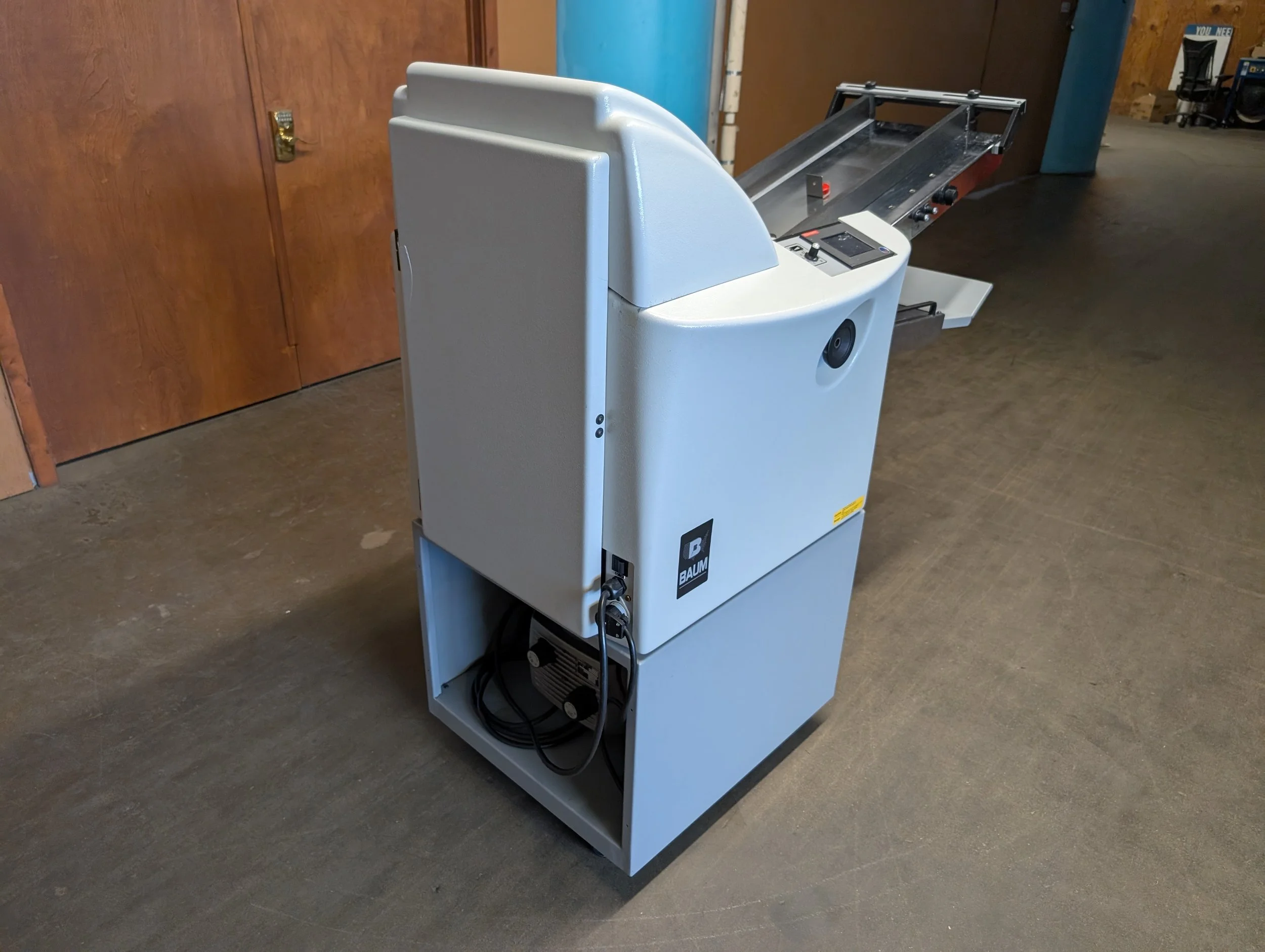

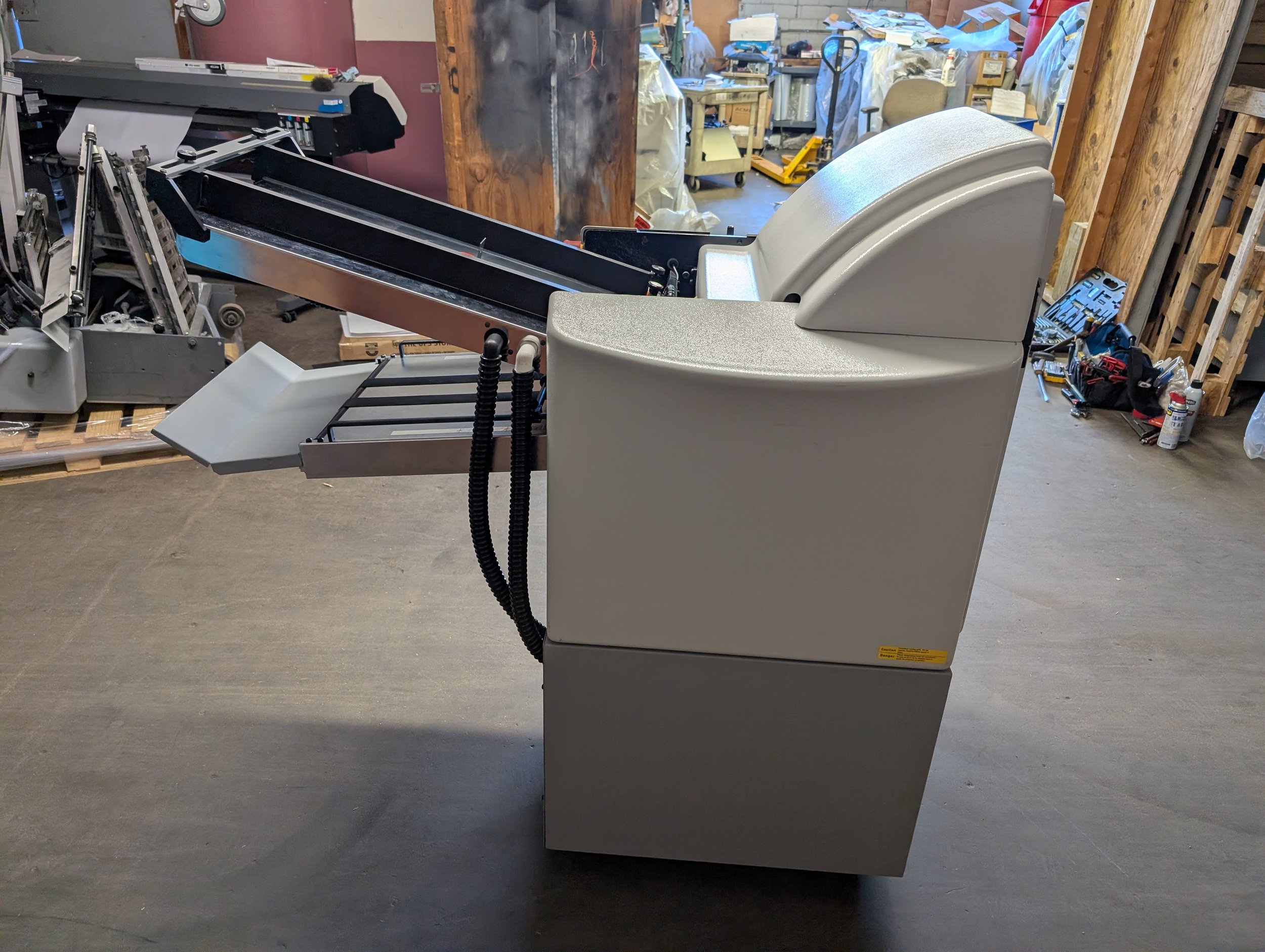

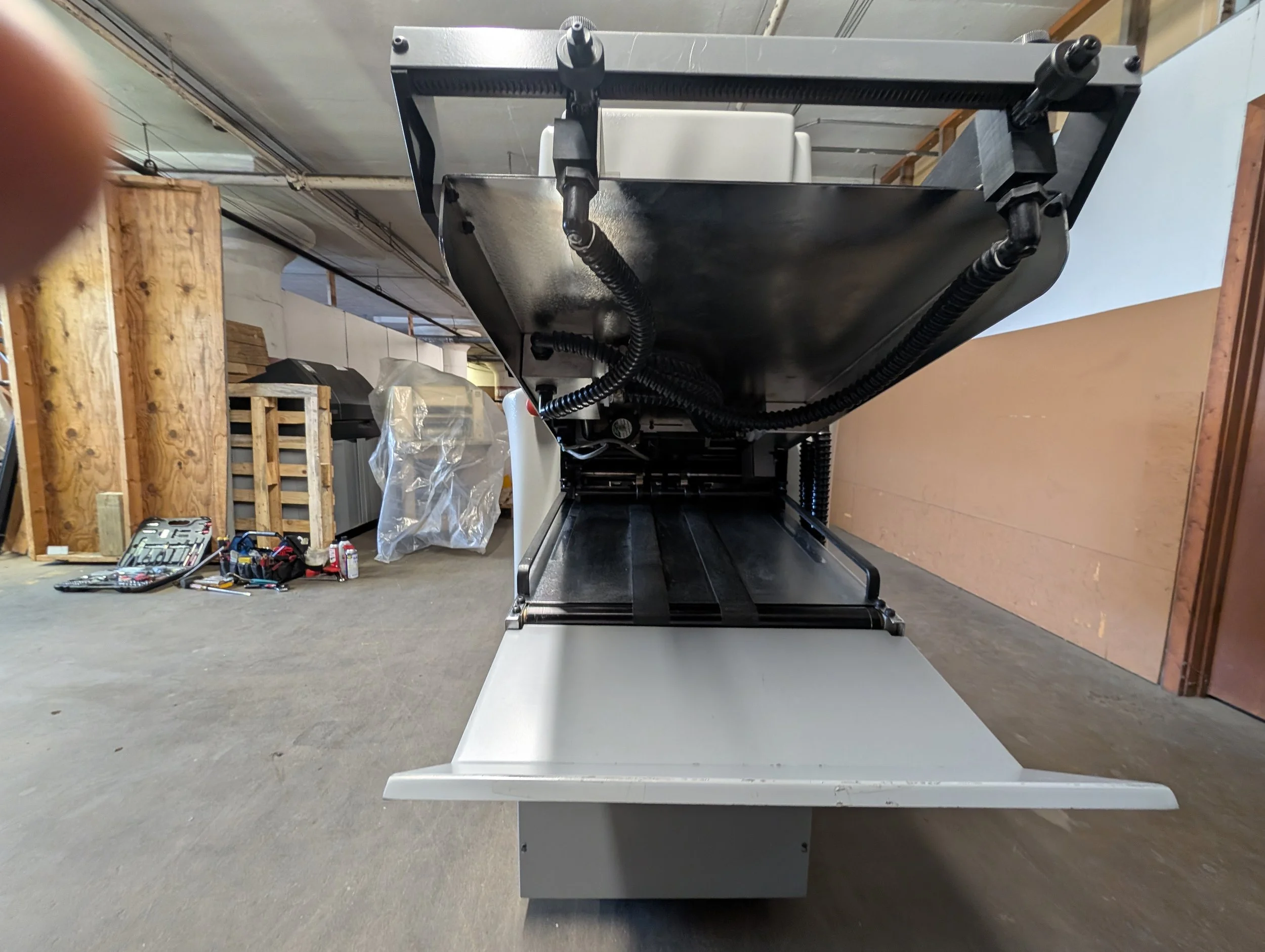

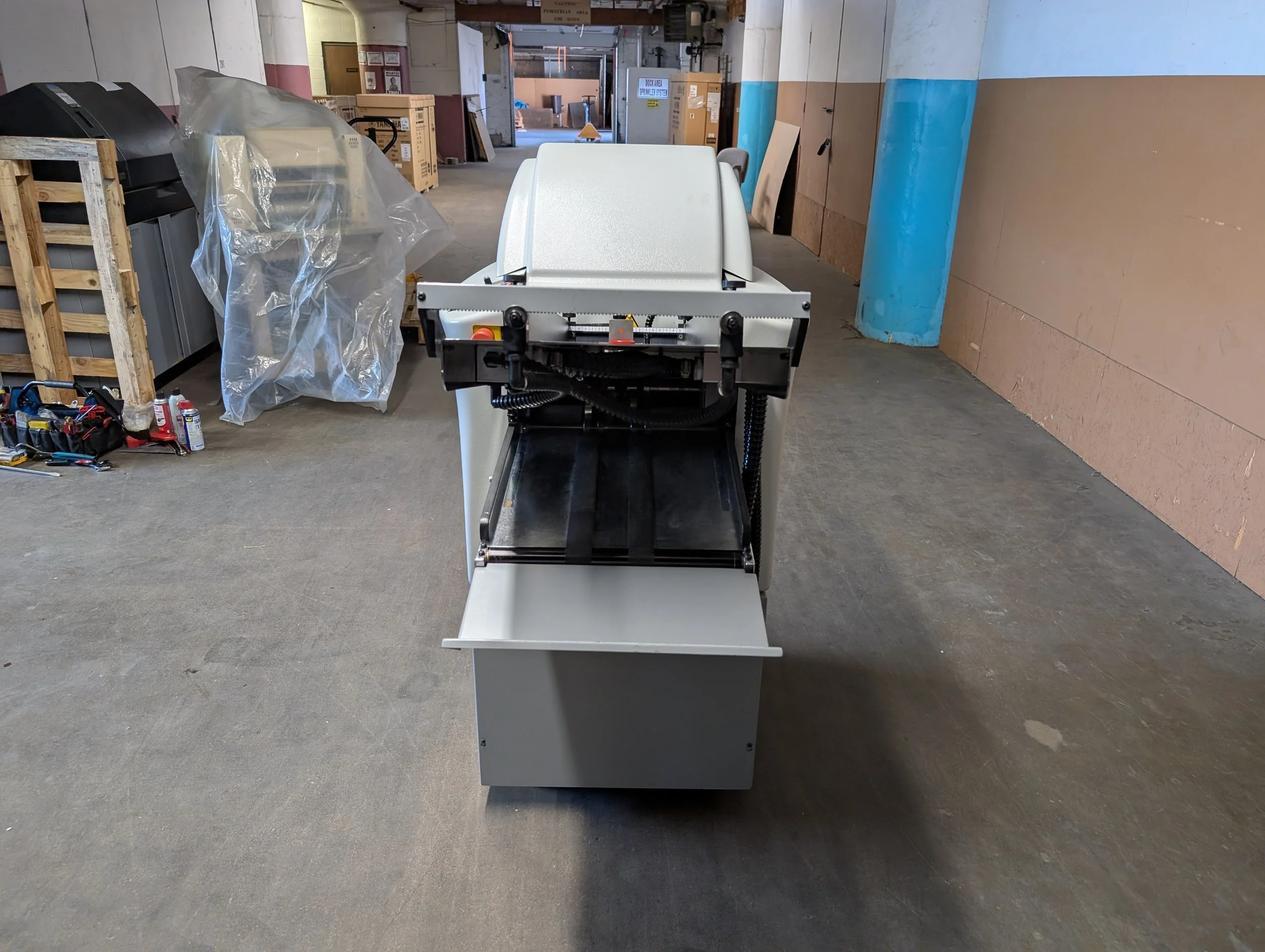

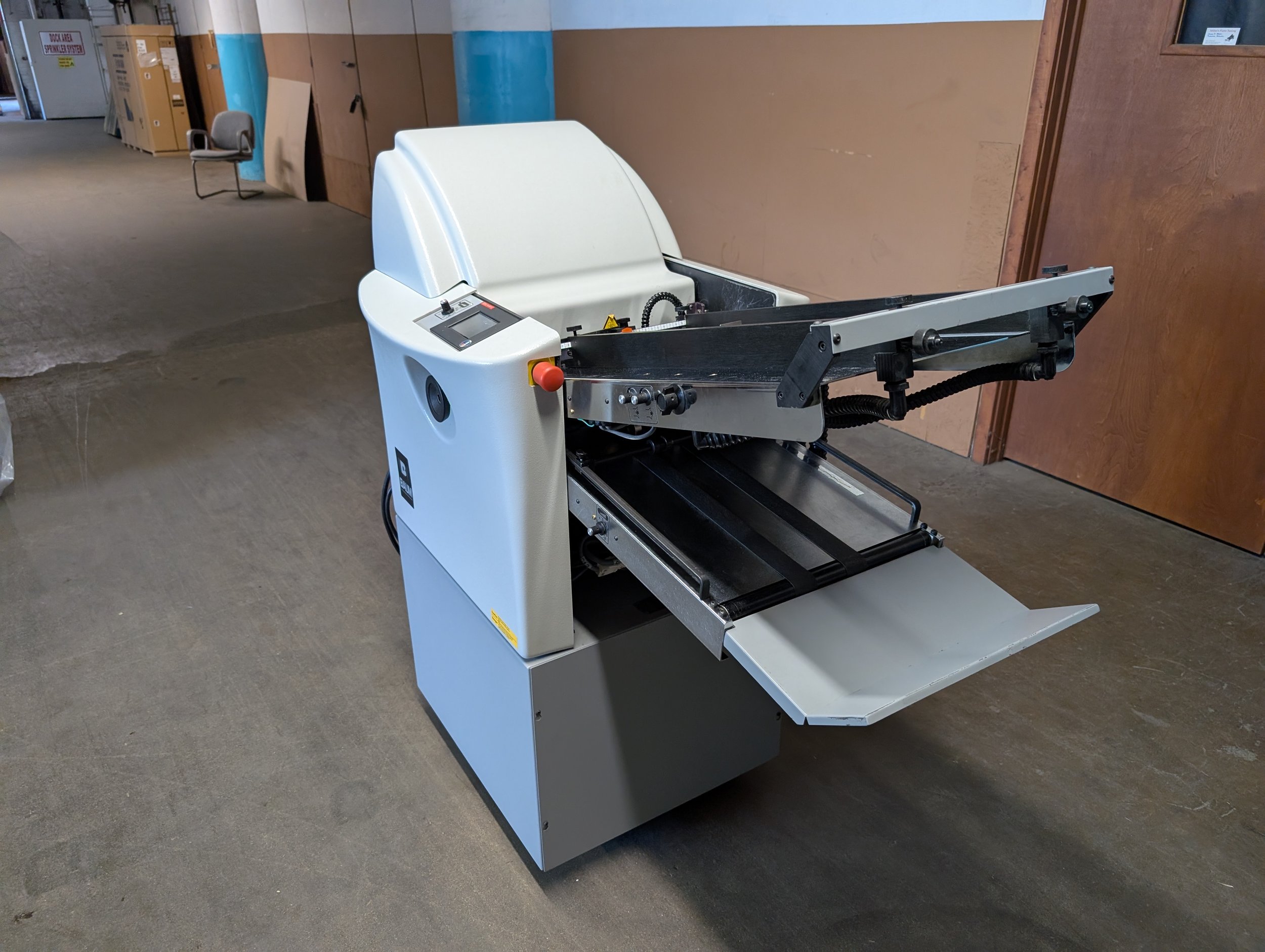

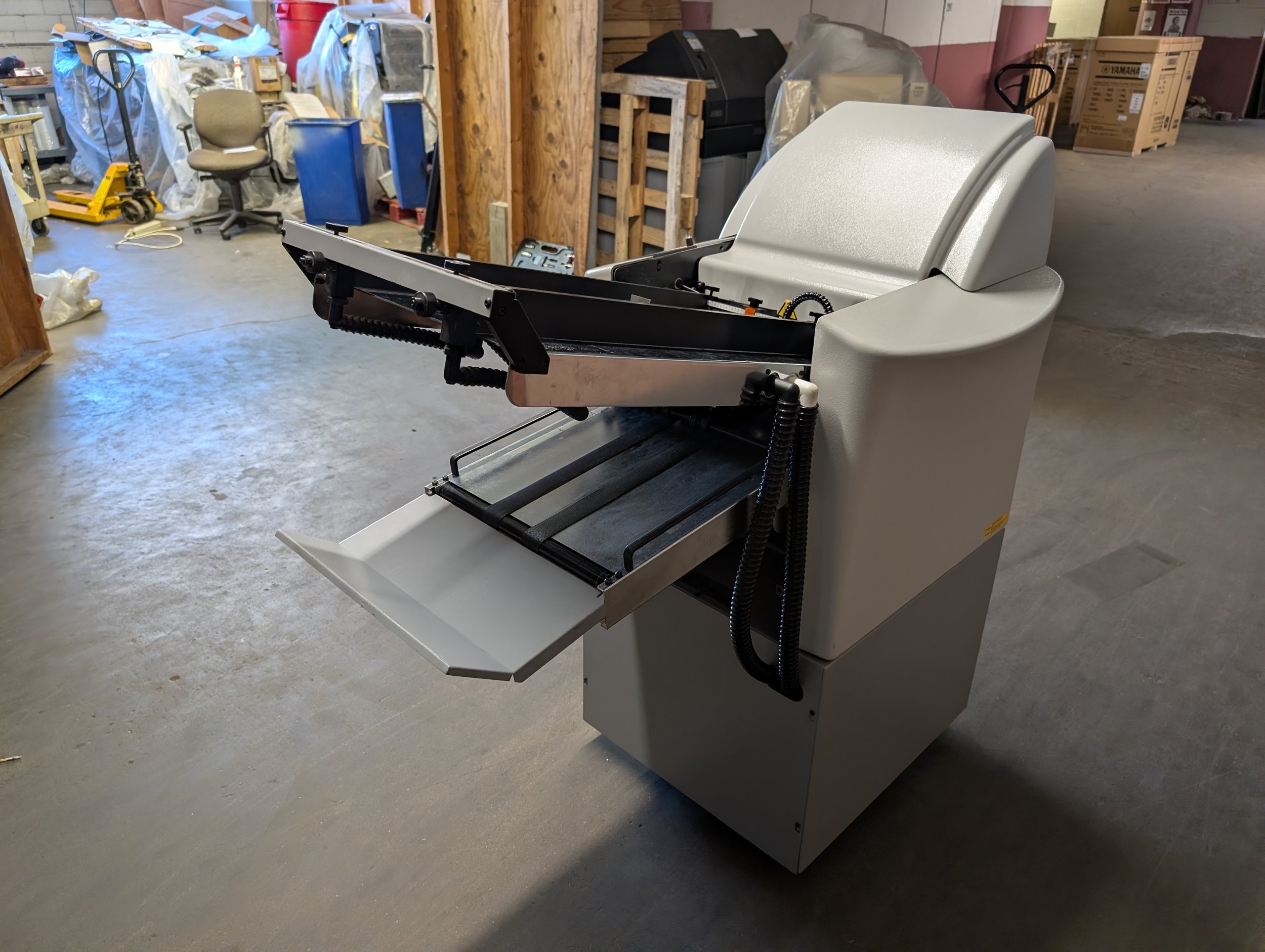

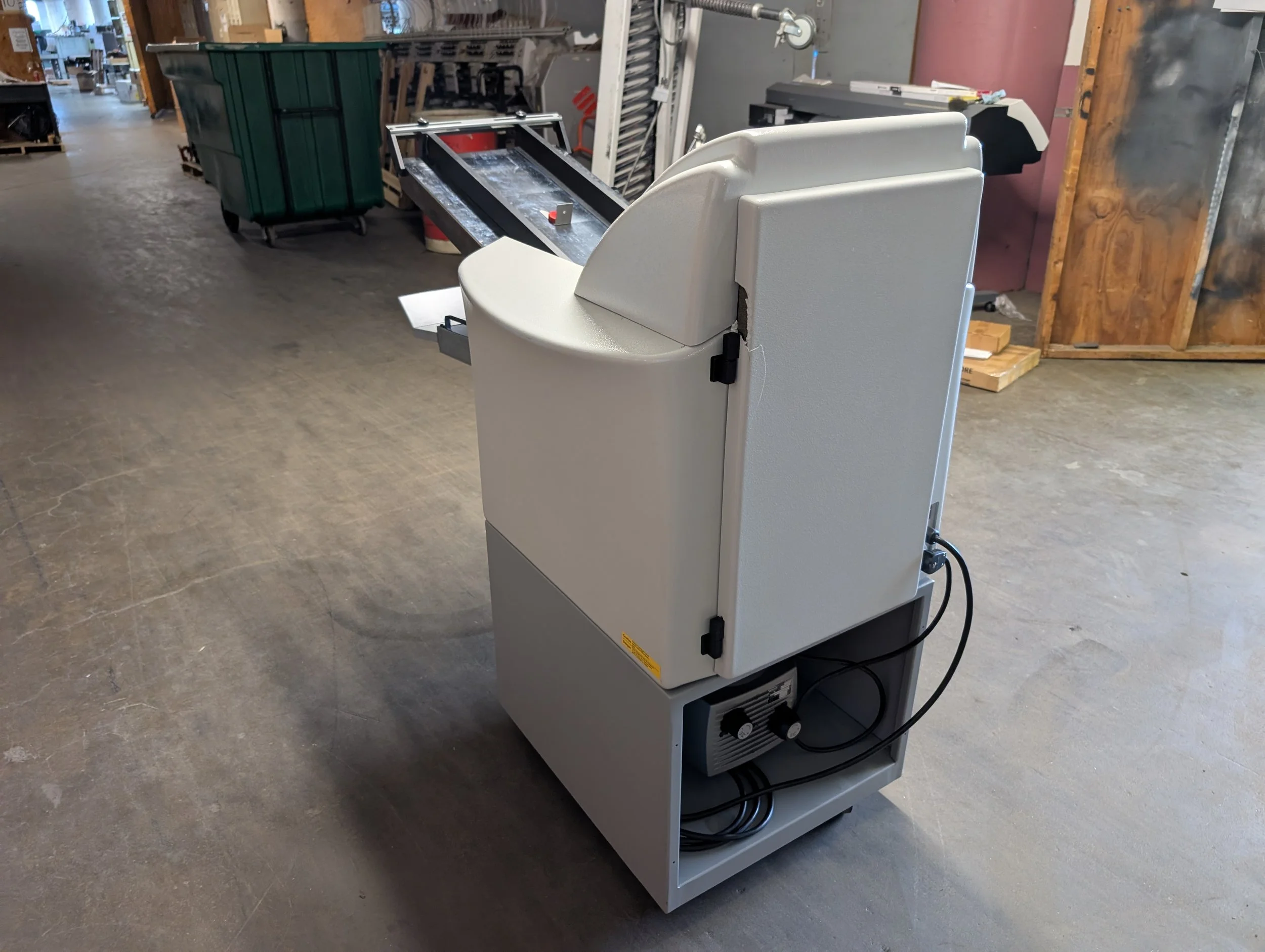

Baum 714XA Fully automated air feed folder!

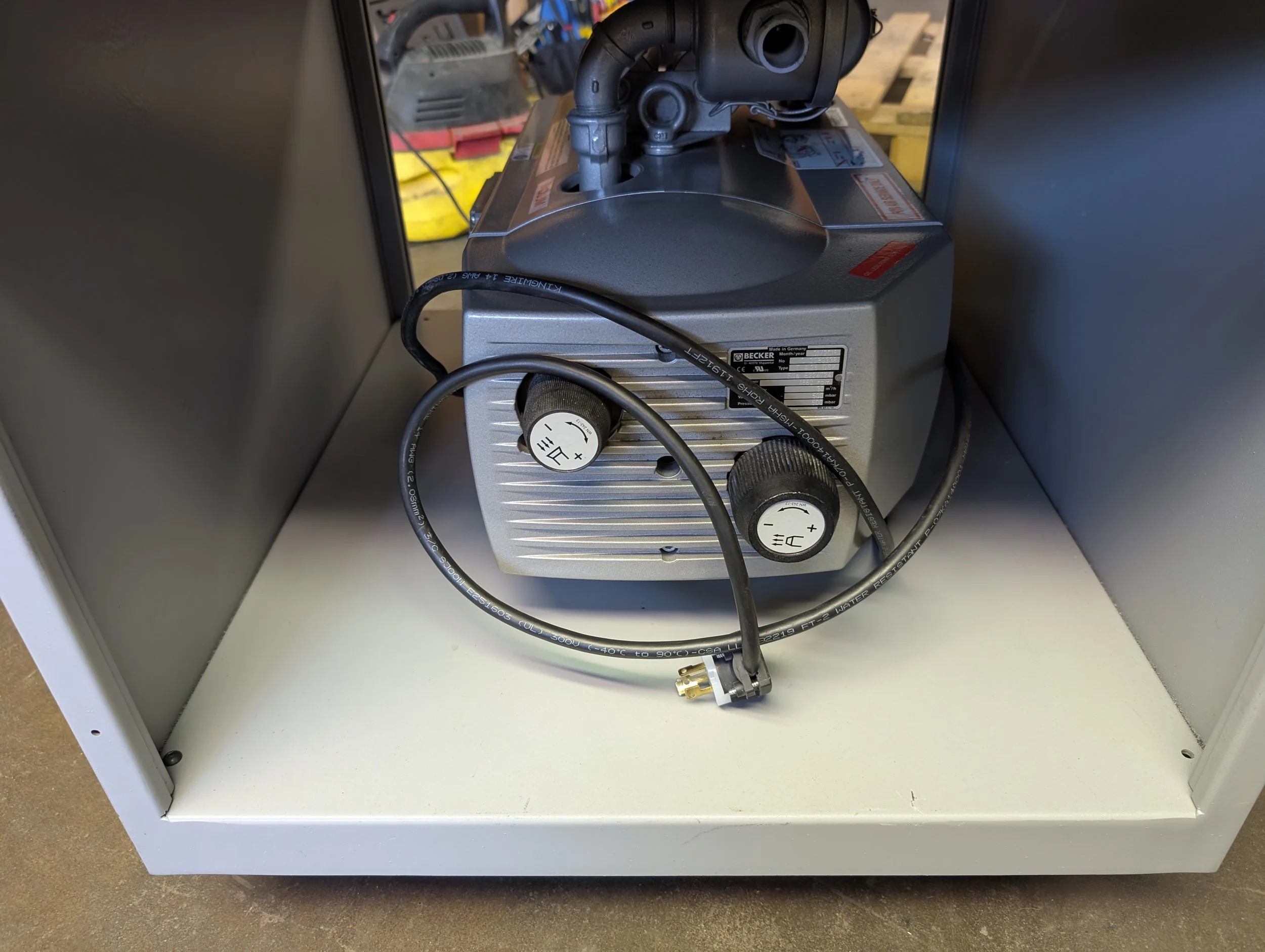

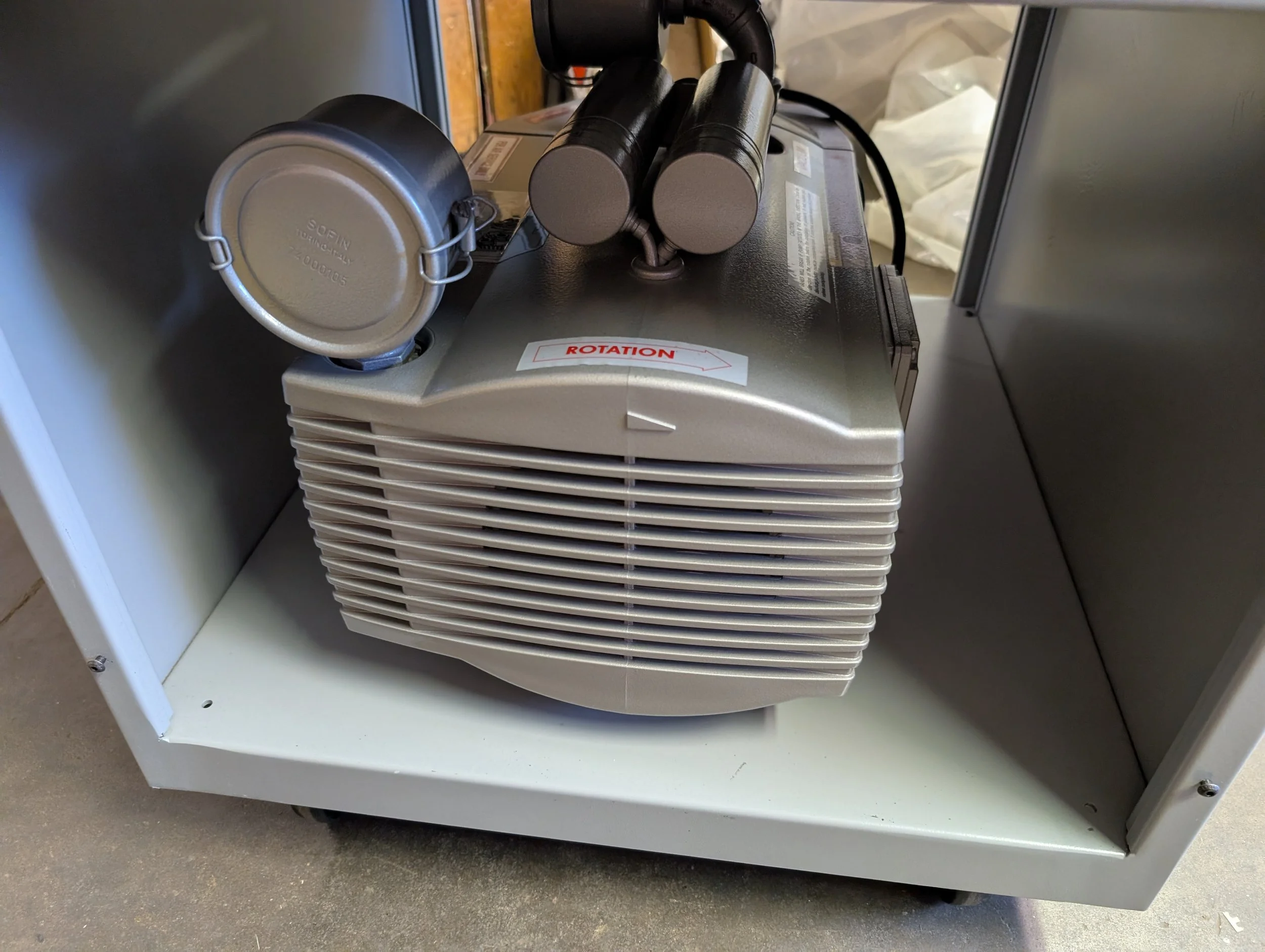

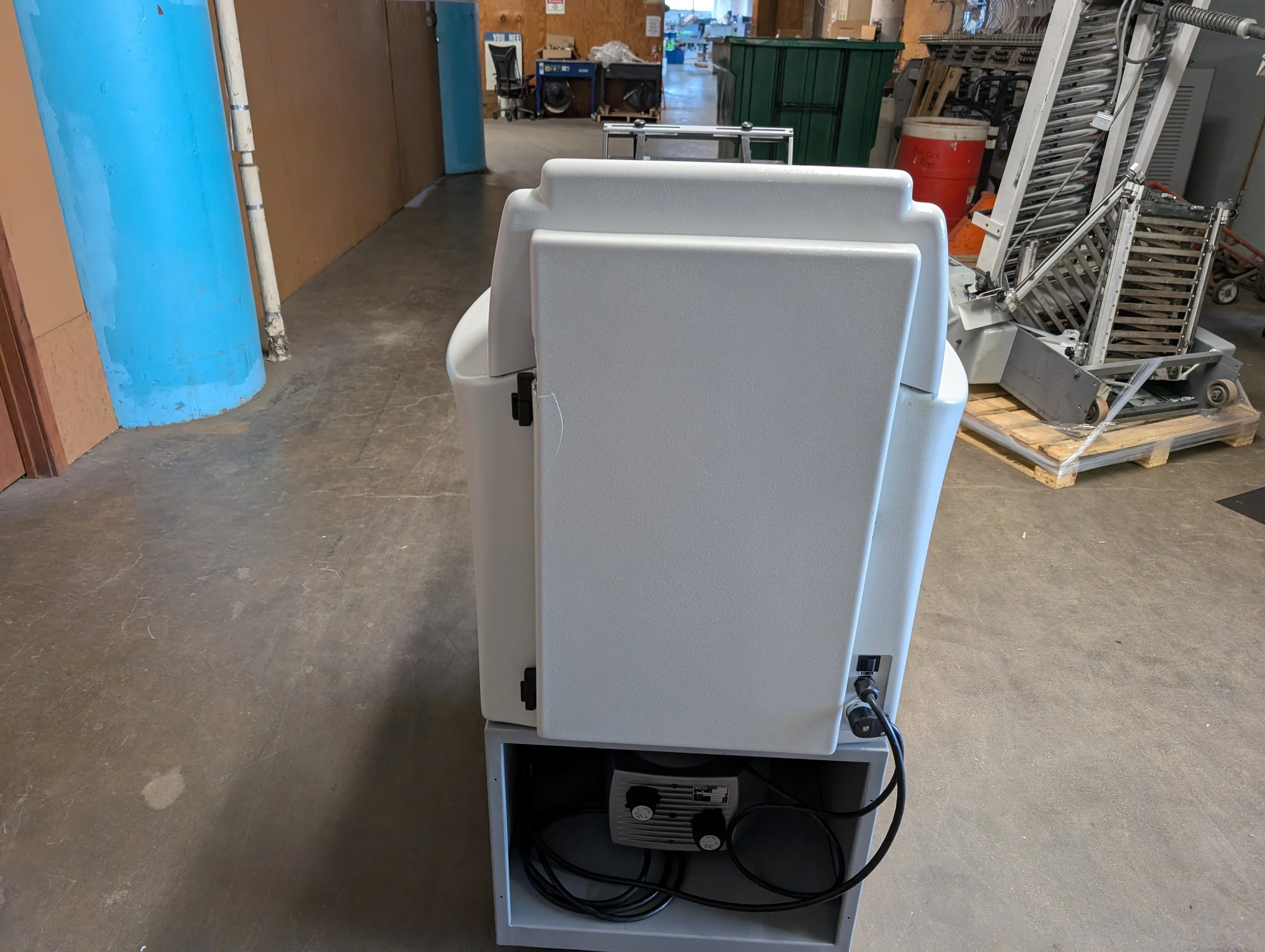

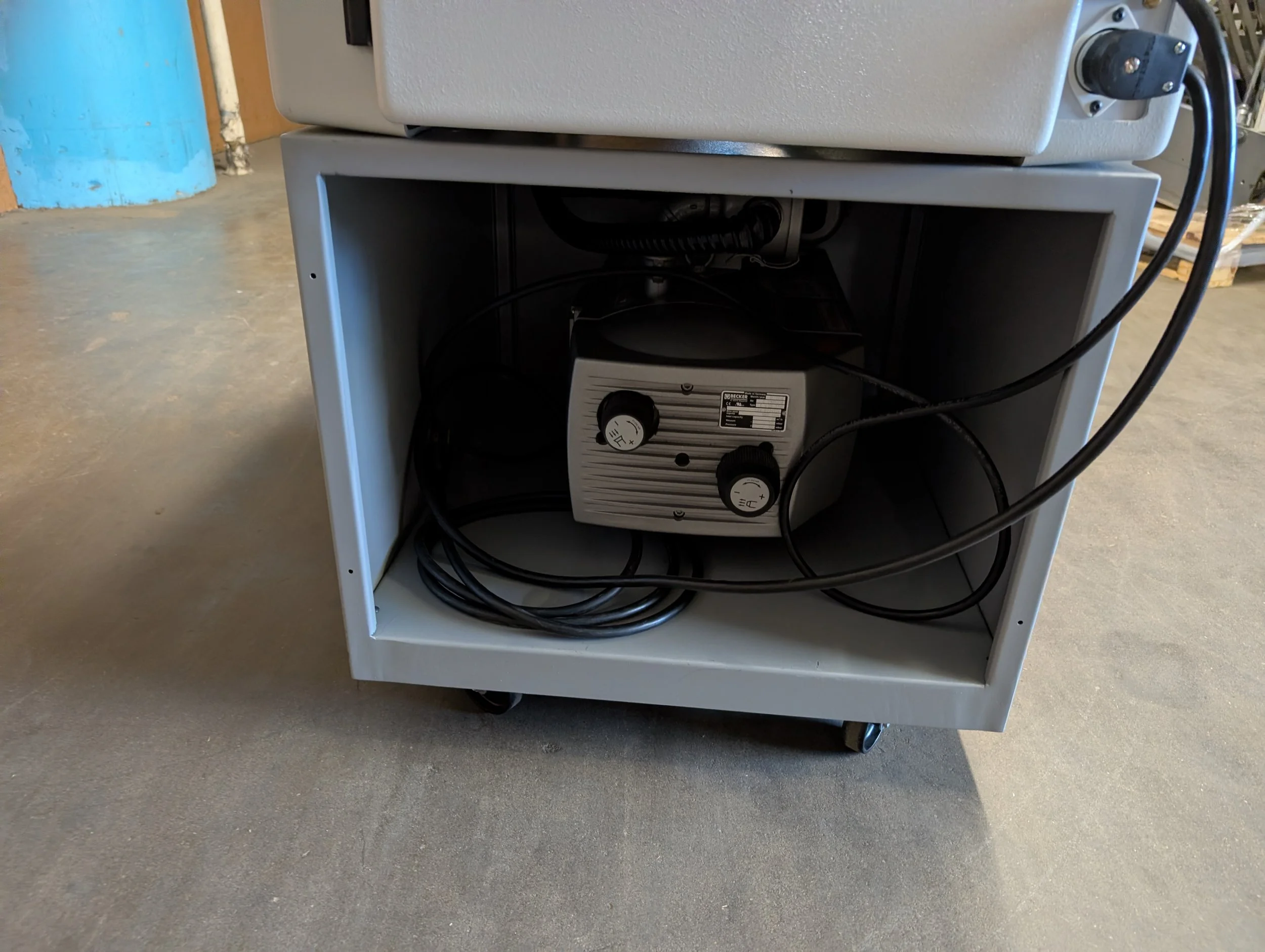

comes with 2 fully automatic motorized fold plates, New style Becker air pump,

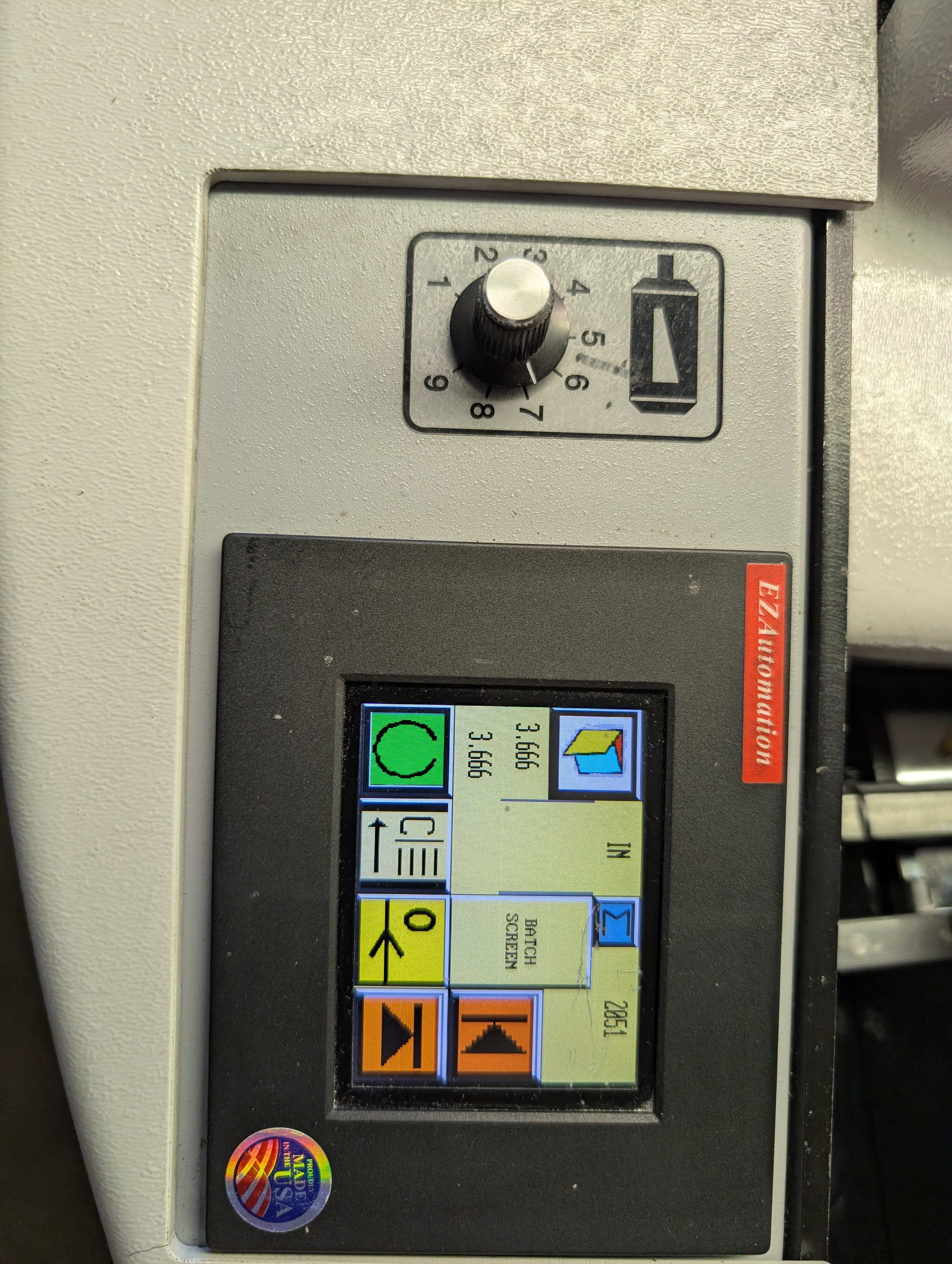

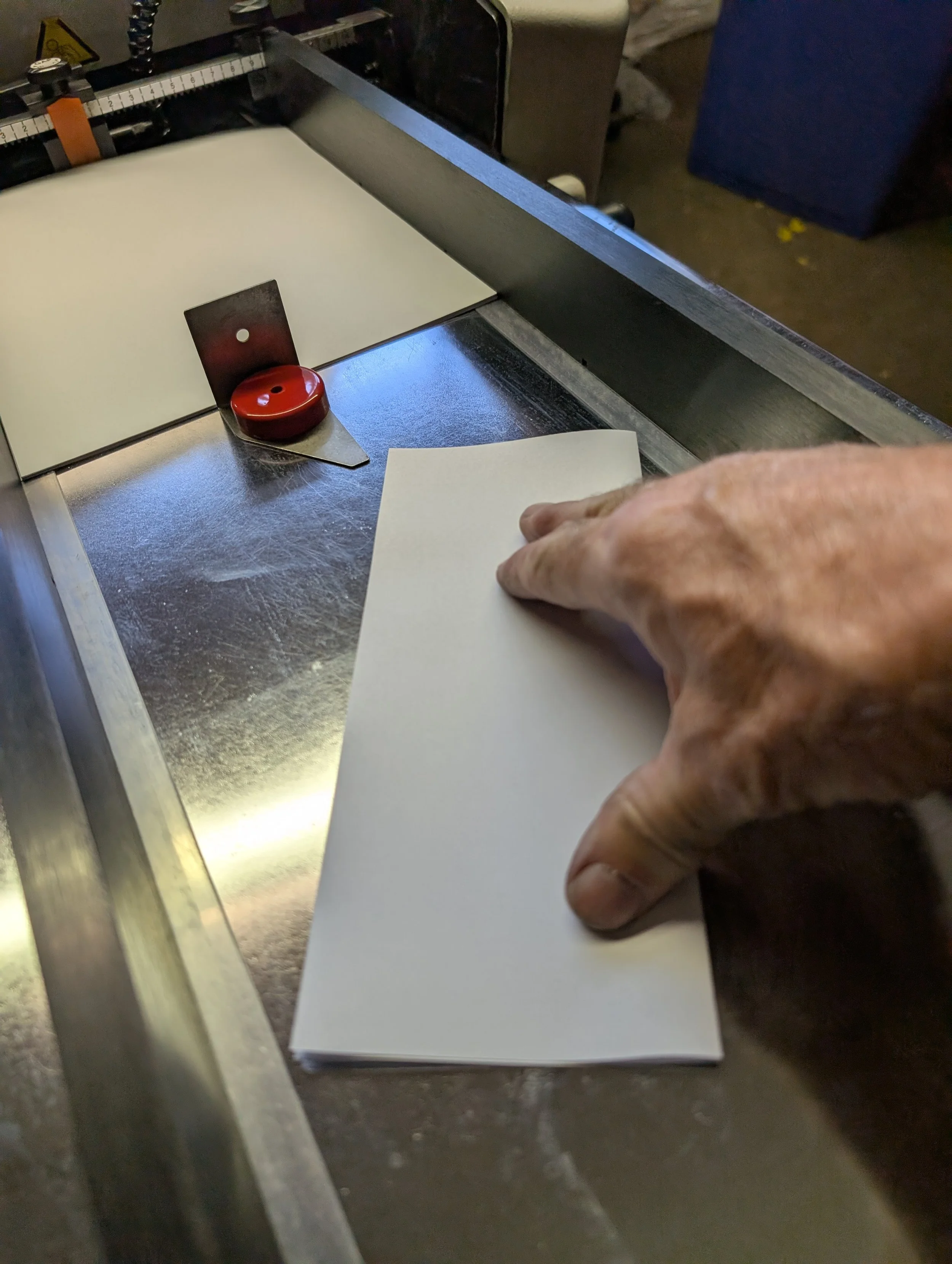

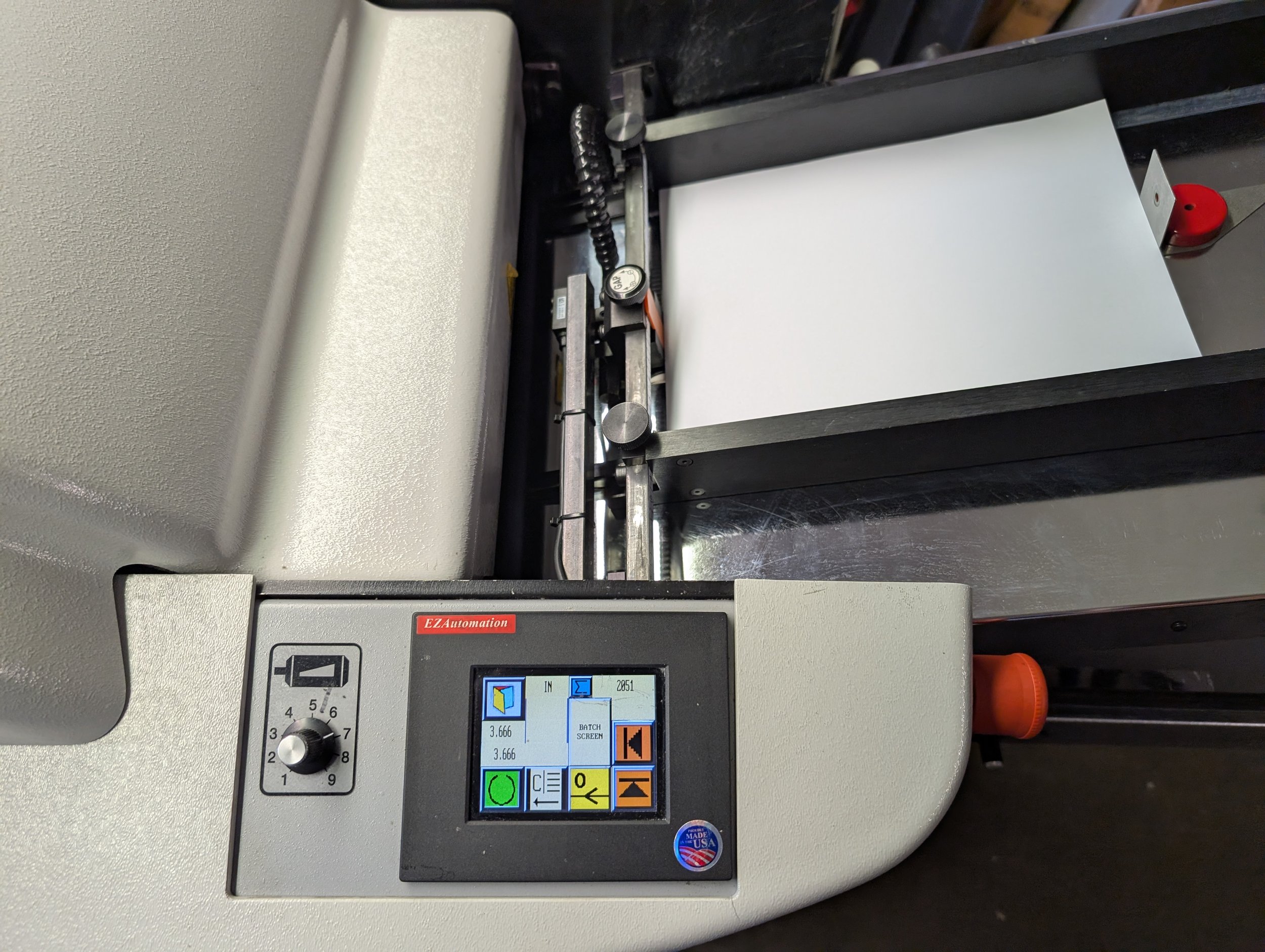

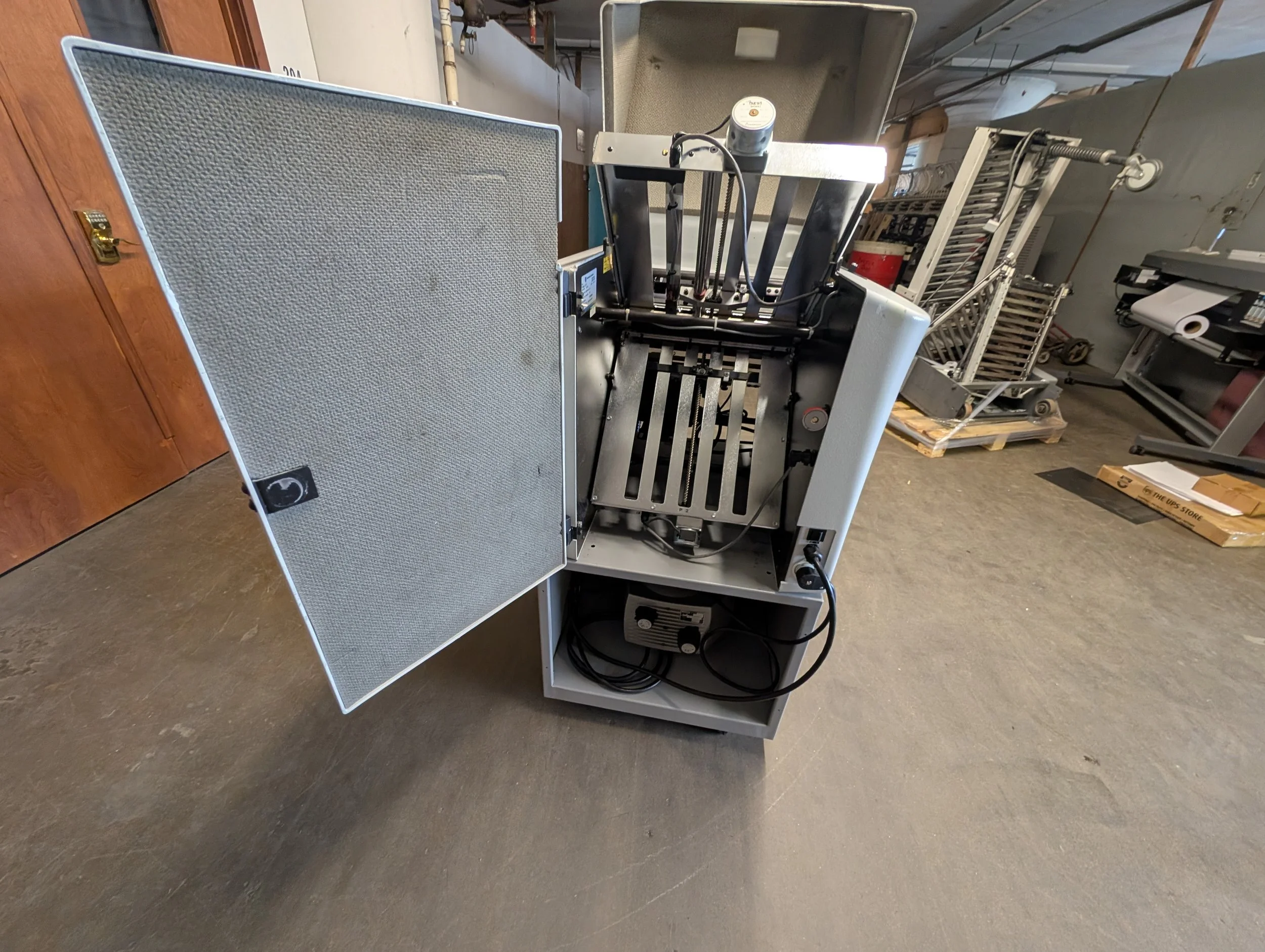

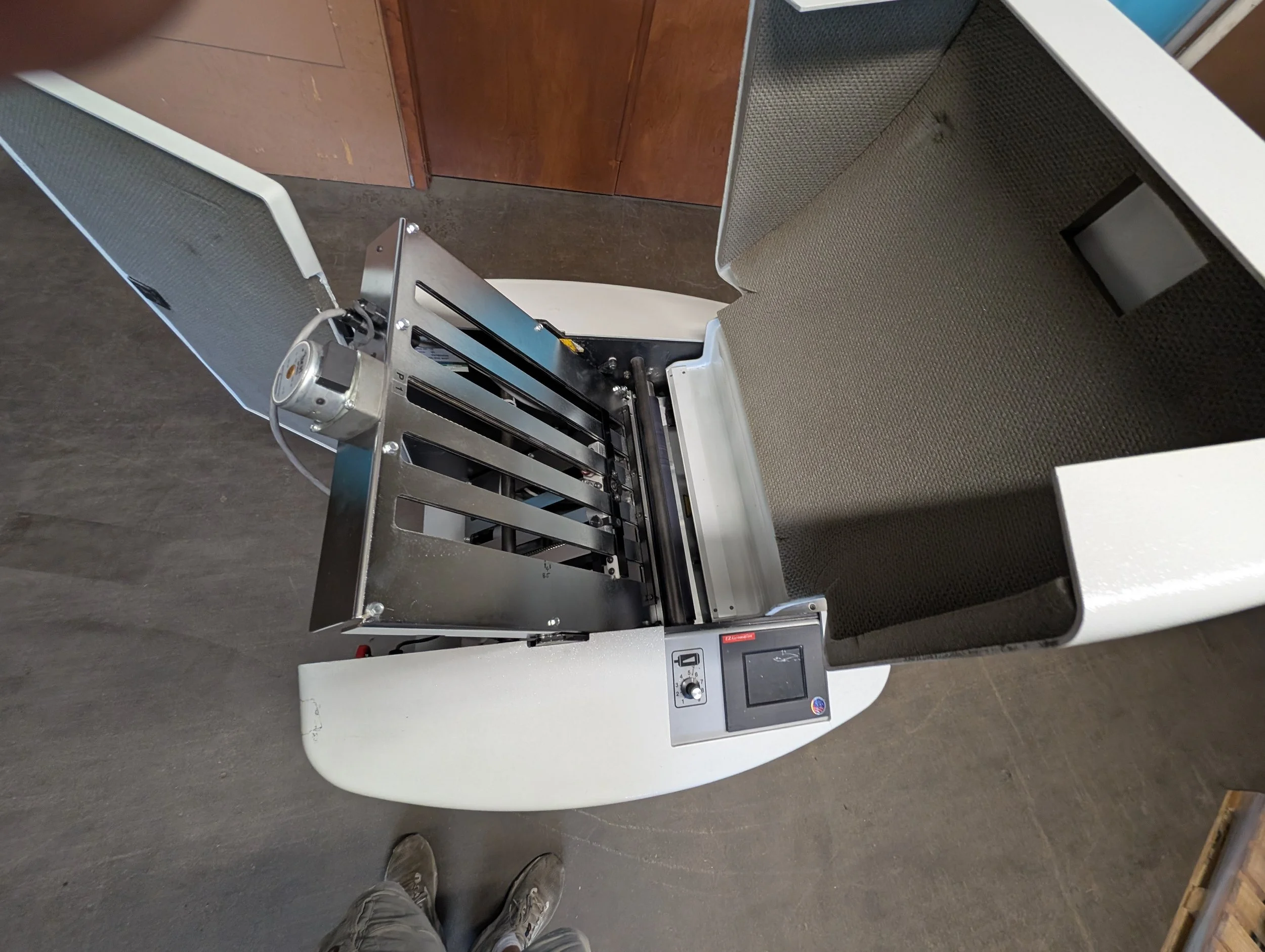

Variable speed delivery, touch screen control, sound covers & cabinet
WHY SPEND OVER $20,000.00 ON A NEW ONE???
THIS ONE IS MINT!!!
WATCH VIDEO LINK BELOW (you may need to copy and paste in your browser)
https://youtu.be/Mu1Xa-sI5JE?is=hKR_joJanF4Mdo--
714XA Autofold Specifications: Maximum folder speed.......................6000"/min
Maximum sheet size (LxW)...............14" x 25.5"
Minimum sheet size (LxW)...................... 3" x 5"
Maximum size fold – #1 or #2 plate........... 13.5"
Minimum size fold........................................... 2"
Minimum paper weight….......16# bond (60g/m2)
Maximum paper weight….. 75# cover (203g/m2)
Feeder pile height (bottom feed).................... 2"

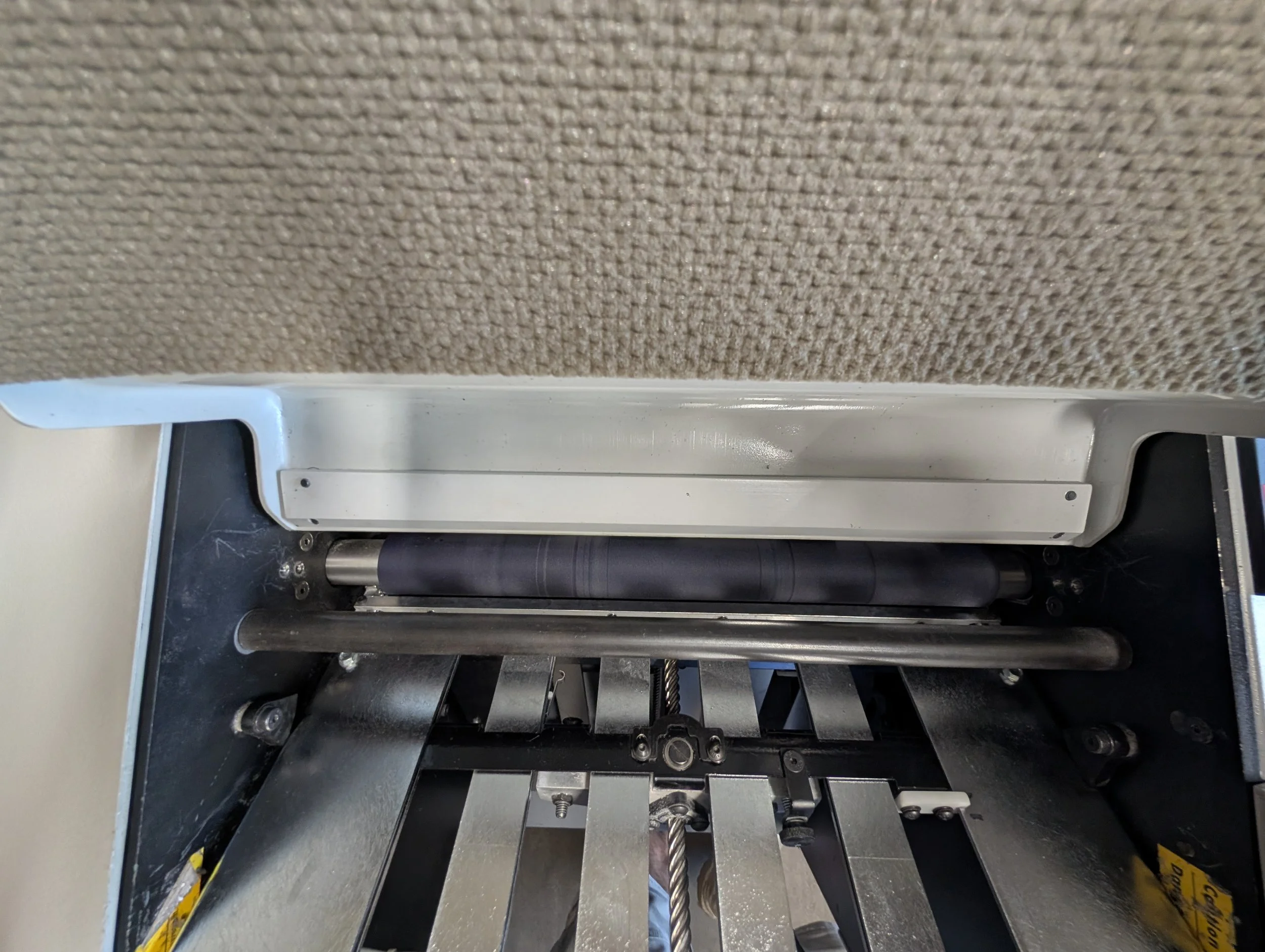

Fold roll diameter..........................................1.5"
Slitter shaft diameter................................... 7/8"
Fold roll material........................... Polyurethane
Number of fold plates........................................2
Jam detection................................................yes
Diagnostic messages.....................................yes
Slitter shaft..................................................fixed Pullout
tire type...........................................laser
Electrical Information: Operating voltage....................0/1/60 or 220/1/50
Power consumption ................110/1/60 20 amps ..........................................220/1/50 /10 ting amps
Note: 110/1/60 electrical version requires NEMA 5-20R receptacle
Dimensions & Weights: Overall machine dimensions: Without mobile cart............56"L x 30" W x 32" H
With mobile cart.................56"L x 30" W x 54" H
Net weight without cart............. 400 lbs (182kg) Net weight with cart................... 450 lbs (204kg)
Key Features
Non-marking, continuous feeding with bottom vacuum feed
Toner-resistant and static-dissipative rollers (urethane)
Sealed ball bearings, no lubrication needed
Removable cartridge design slitter shafts

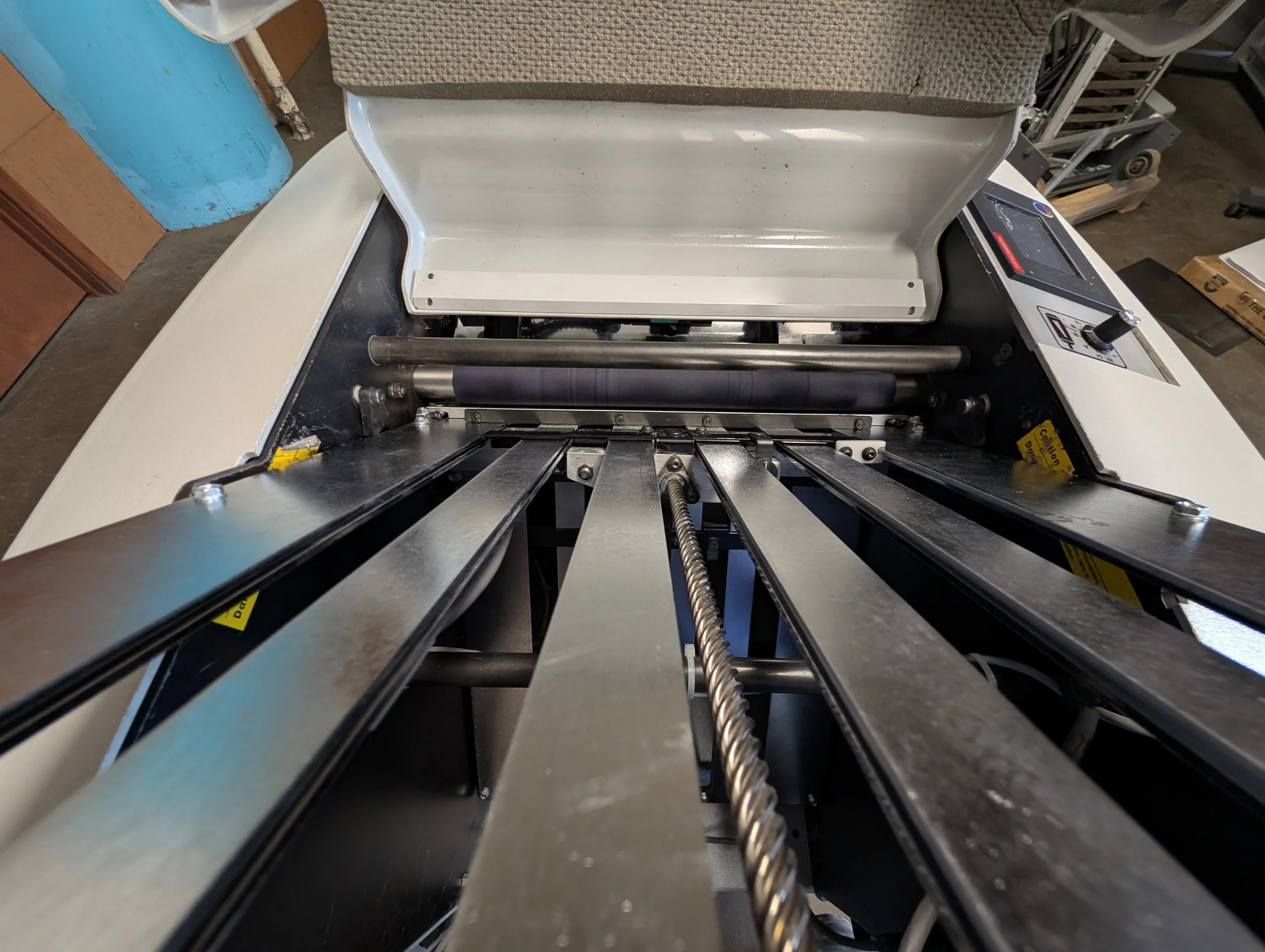

Gear-driven folding rollers with automatic tensioning
Quiet pump for air and vacuum
Rack & pinion gear side guides for squareness
Loads/unloads from the same end
BAUM Turbo Wheel air/vacuum feeding technology
3-year or 6,000-hour parts warranty
Optional perforator/scorer and 8-page right-angle folder for cross folds
Applications
Digital printers (short runs)
Quick setup for larger floor folders
Newsletters, bulletins, invoices, flyers
In-house copier/laser output folding
Manufacturing, warehouse, and church/institutional use
This model combines the durability of full-size floor folders with the convenience of a tabletop unit, making it a versatile choice for both small and medium-volume finishing needs.
Fantastic system so grab it while its here. Just $7,865.00 !!!
(delivery & installation can be quoted per location)
Ask for the brochure on this one!
Call us @ 440-949-1201
